Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
The SCAN921023SLC is a highly configurable device. To properly configure it, refer to the datasheet and application notes. Identify the specific features required for your application, such as the clock frequency, data format, and interface mode. Use the TI-provided software tools, such as the SCAN921023SLC Evaluation Module, to simplify the configuration process.
The SCAN921023SLC has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat dissipation, such as using a heat sink or thermal pad, and keeping the device away from heat sources. Follow the recommended thermal design guidelines in the datasheet to prevent overheating and ensure reliable operation.
To troubleshoot issues, start by reviewing the datasheet and application notes. Check the device's configuration, clock frequency, and data format. Use TI-provided software tools, such as the SCAN921023SLC Evaluation Module, to debug and analyze the device's behavior. Also, consult the TI support forums and knowledge base for common issues and solutions.
The SCAN921023SLC has built-in ESD protection, but it's still essential to follow proper handling and storage precautions to prevent damage. Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat. Store the device in an anti-static bag or container, and follow the recommended handling procedures outlined in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCAN921023SLC Overview

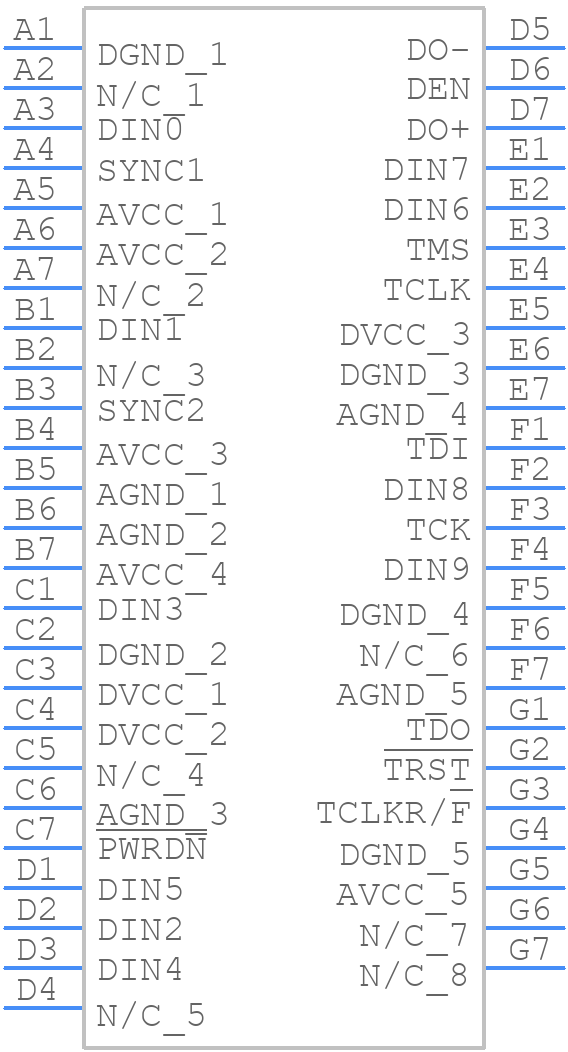

Use the download button to access the SCAN921023SLC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCAN9,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
