Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the clock and data signals.
To ensure reliable data transmission and reception, it's crucial to follow the recommended signal integrity guidelines, use proper termination, and implement error detection and correction mechanisms, such as CRC or checksum, in your firmware.
The maximum cable length supported by the SCAN921224SLC depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length below 10 meters for reliable operation. However, it's possible to use longer cables with proper signal conditioning and amplification.
The SCAN921224SLC supports multiple data rates, and the configuration depends on the specific application and the desired data rate. Refer to the datasheet and the device's programming guide for detailed information on configuring the device for different data rates.
The SCAN921224SLC has specific power sequencing requirements to ensure proper operation. It's essential to follow the recommended power-up and power-down sequences outlined in the datasheet to prevent damage to the device or other components on the board.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCAN921224SLC Overview

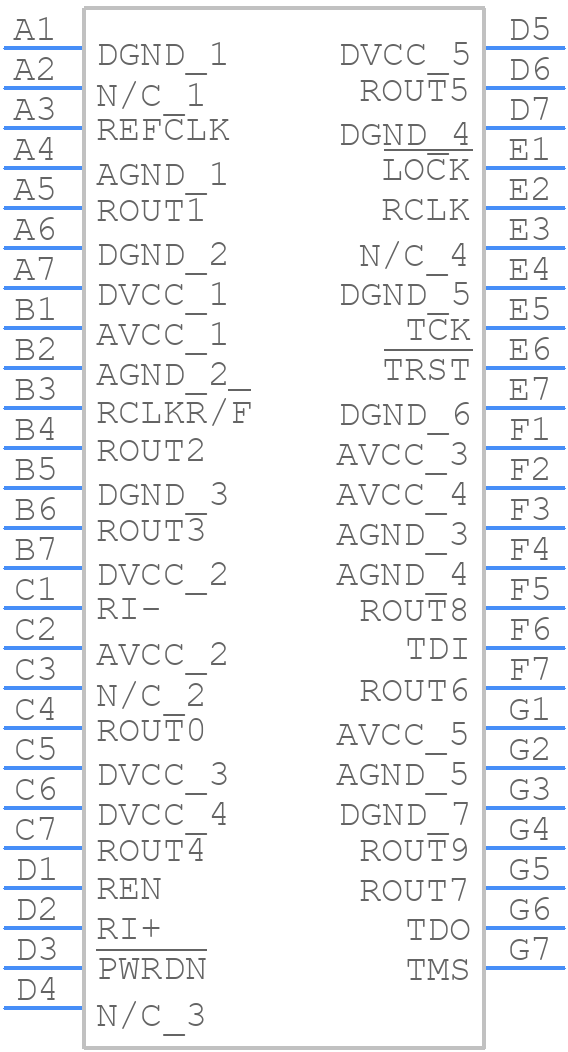

Use the download button to access the SCAN921224SLC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCAN9,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
