Texas Instruments provides a recommended PCB layout in the SCAN921226HSM evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The SCAN921226HSM can be configured for different clock frequencies using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output. Refer to the datasheet for specific register settings and clock frequency ranges.
The SCAN921226HSM supports data transfer rates up to 100 Mbps, depending on the clock frequency and configuration. However, the actual data transfer rate may be limited by the system's bus speed, memory bandwidth, and other factors.
The SCAN921226HSM provides built-in error detection mechanisms, such as parity and cyclic redundancy check (CRC). You can also implement additional error correction mechanisms, such as checksums or forward error correction (FEC), in your system's firmware or software.
The power consumption of the SCAN921226HSM varies depending on the operating frequency, voltage, and configuration. The typical power consumption is around 100 mW at 100 MHz. The device also has a thermal shutdown feature to prevent overheating. Refer to the datasheet for detailed power consumption and thermal characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCAN921226HSM Overview

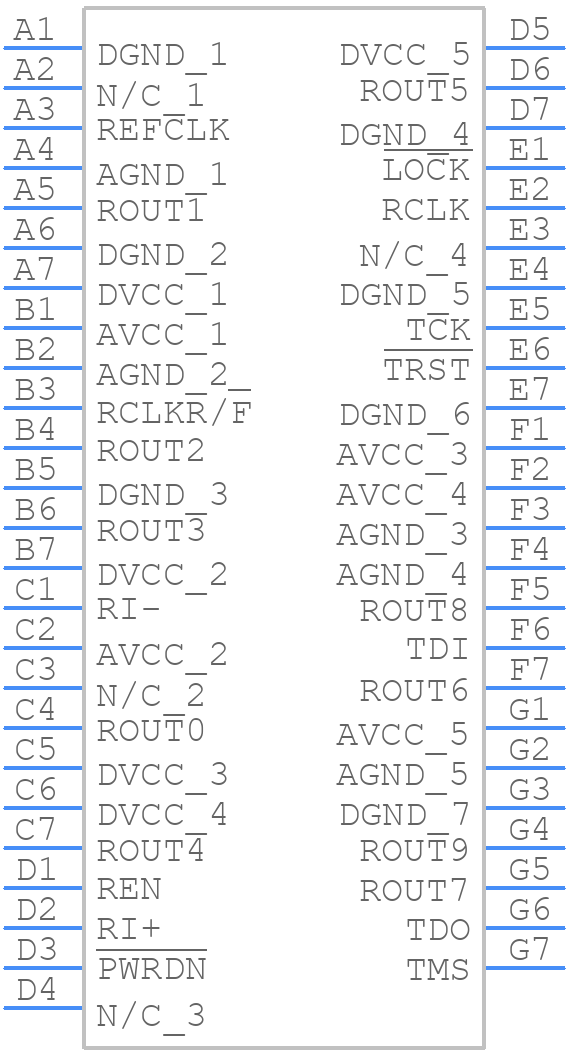

Use the download button to access the SCAN921226HSM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCAN9,
or try a keyword search, such as Line Driver or Receivers
