Texas Instruments provides a recommended PCB layout in the SCANSTA101SMX/NOPB datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using bypass capacitors to reduce noise and EMI.
To ensure reliable communication, make sure to follow the recommended communication protocols, such as I2C or SPI, and use proper signal termination, pull-up resistors, and clock synchronization. Additionally, implement error detection and correction mechanisms, such as checksums or CRC, to detect and correct data transmission errors.
The SCANSTA101SMX/NOPB requires a specific power sequencing order to ensure proper operation. The recommended power-up sequence is VCC, then VDD, and finally the input signals. The power-down sequence should be reversed. Failure to follow the recommended power sequencing may result in device damage or malfunction.
The SCANSTA101SMX/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink, thermal vias, or a thermally conductive PCB material. Additionally, ensure good airflow and avoid blocking the airflow around the device.
The SCANSTA101SMX/NOPB has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing, testing, and assembly. Use ESD-safe materials, wrist straps, and mats to prevent static electricity damage to the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SCANSTA101SMX/NOPB Overview

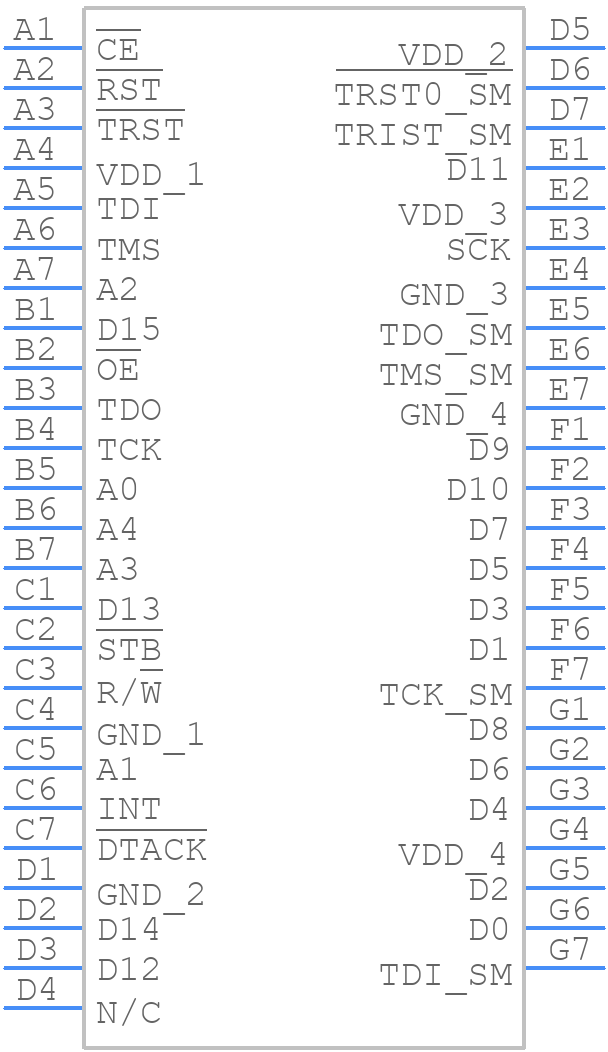

Use the download button to access the SCANSTA101SMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCANS,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
