A good PCB layout for the SCANSTA112SMX/NOPB involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the SCANSTA112SMX/NOPB, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins. Also, use a 10kΩ resistor in series with the power supply to prevent voltage spikes.
The recommended clock frequency for the SCANSTA112SMX/NOPB is between 10MHz to 100MHz. The clock signal should have a low jitter (less than 100ps) and a stable amplitude (around 3.3V). A clock signal with a 50% duty cycle is recommended for optimal performance.
To configure the SCANSTA112SMX/NOPB for optimal analog-to-digital conversion, set the ADC clock frequency to 10MHz or higher, and use the internal reference voltage (VREF) or an external reference voltage (VREFP and VREFN). Also, ensure the input signal is within the recommended range (0 to VREF) and use the correct gain setting for the input signal amplitude.
The recommended method for interfacing the SCANSTA112SMX/NOPB with a microcontroller or FPGA is through a SPI or I2C interface. Use a dedicated SPI or I2C bus for communication, and ensure the microcontroller or FPGA is configured to match the SCANSTA112SMX/NOPB's clock frequency and data format.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCANSTA112SMX/NOPB Overview

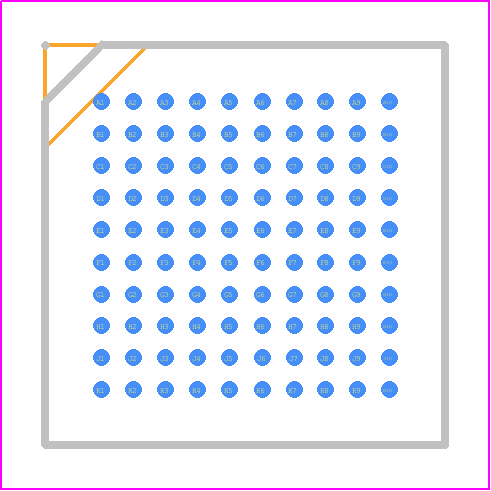

Use the download button to access the SCANSTA112SMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCANS,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
