Texas Instruments provides a recommended PCB layout in the SCANSTA112SMX evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The SCANSTA112SMX can be configured for different scan modes (e.g., single-shot, continuous, or triggered) using the SPI interface. Refer to the device's programming guide and register descriptions in the datasheet for specific configuration details.
The maximum data transfer rate for the SPI interface is 20 MHz, but it can be adjusted based on system requirements. Ensure that the SPI clock frequency is within the recommended range to maintain reliable data transfer.
Proper thermal management is crucial for the SCANSTA112SMX. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to maintain a temperature range of -40°C to 125°C. Refer to the thermal design guidelines in the datasheet for more information.
The power consumption of the SCANSTA112SMX varies depending on the mode of operation. In active mode, the typical current consumption is around 12 mA, while in standby mode, it is approximately 1.5 mA. Refer to the datasheet for detailed power consumption specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SCANSTA112SMX Overview

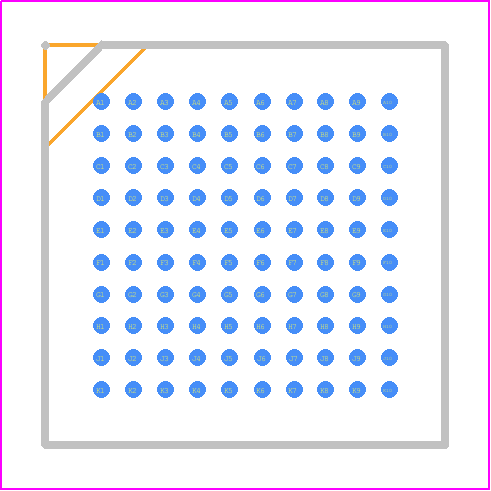

Use the download button to access the SCANSTA112SMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCANS,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
