SCANSTA112SM/NOPB - Texas Instruments

Description: 7-port Multidrop IEEE 1149.1 (JTAG) Multiplexer

Download SCANSTA112SM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SCANSTA112SM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

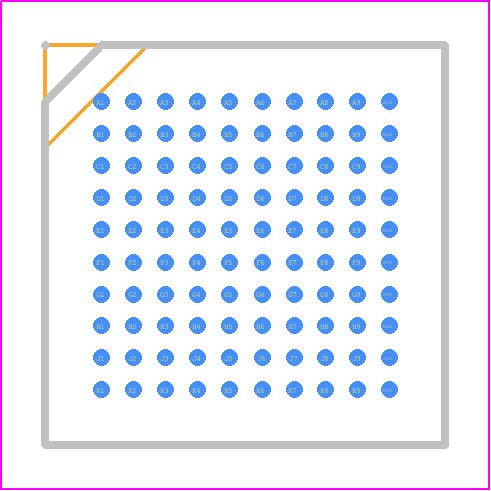

SCANSTA112SM/NOPB - Texas Instruments PCB footprint - BGA - BGA - NDZ0100A
click to zoom
3D Models
SCANSTA112SM/NOPB - Texas Instruments - 3D model - BGA - NDZ0100A
click to zoom

SCANSTA112SM/NOPB Details

  • Manufacturer Part Number:

    SCANSTA112SM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    100

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B100

  • JESD-609 Code:

    e1

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA100,10X10,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR CIRCUIT

SCANSTA112SM/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF decoupling capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
  • Use a thermocouple or a thermistor with a high accuracy rating. Ensure proper thermal coupling between the sensor and the device under test. Calibrate the temperature measurement system before use. Consider using a temperature calibration circuit or a precision voltage reference.
  • The maximum cable length depends on the signal frequency and the cable's capacitance. As a general guideline, keep the cable length below 10 meters for frequencies up to 100 kHz. Use a shielded cable and terminate it with a 100Ω resistor to minimize signal reflections.
  • Use a ground plane and a shielded enclosure to reduce electromagnetic interference. Keep analog and digital circuits separate and use separate power supplies. Use bypass capacitors and ferrite beads to filter out high-frequency noise. Consider using a common-mode choke to reduce electromagnetic radiation.
  • Power up the device in the following sequence: VCC, AVCC, and then the digital inputs. Ensure that the power supplies are stable and within the recommended voltage range before applying the digital inputs.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SCANSTA112SM/NOPB Overview

Use the download button to access the SCANSTA112SM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCANS, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
