- Stock & Prices $ Price & Stock for SCANSTA476TSD
- Part Number SCANSTA476TSD
- Manufacturer Texas Instruments
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - DFN500X500X80-17N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
SCANSTA476TSD Details
-
Manufacturer Part Number:
SCANSTA476TSD
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
5 X 5 MM, 0.8MM HEIGHT, PLASTIC, LLP-16
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Adjustable Threshold:
NO
SCANSTA476TSD Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the SCANSTA476TSD evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
The SCANSTA476TSD has multiple power modes, including low-power mode. To configure the device for low-power mode, refer to the device's datasheet and programming guide, which provide detailed information on register settings and power management techniques.
-
The SCANSTA476TSD is rated for operation from -40°C to 125°C, but it's essential to consider the specific application and environmental conditions to ensure reliable operation within the specified temperature range.
-
To troubleshoot ADC issues, start by verifying the ADC configuration and settings, then check the input signal quality, and finally, consult the device's datasheet and application notes for guidance on ADC calibration and troubleshooting techniques.
-
The SCANSTA476TSD is not specifically designed for safety-critical applications, but it can be used in such applications with proper design, testing, and validation. It's essential to consult with Texas Instruments and follow relevant safety standards and guidelines.
Trust Checks
System Verified
SCANSTA476TSD Overview

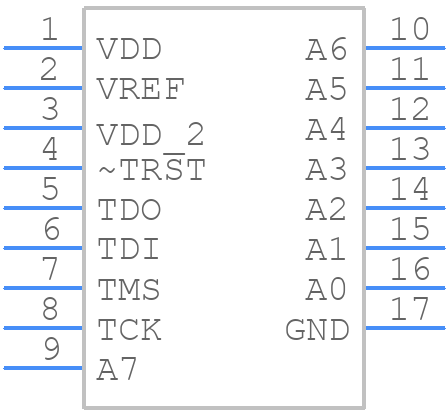

Use the download button to access the SCANSTA476TSD schematic symbol, PCB footprint, and 3D model.
