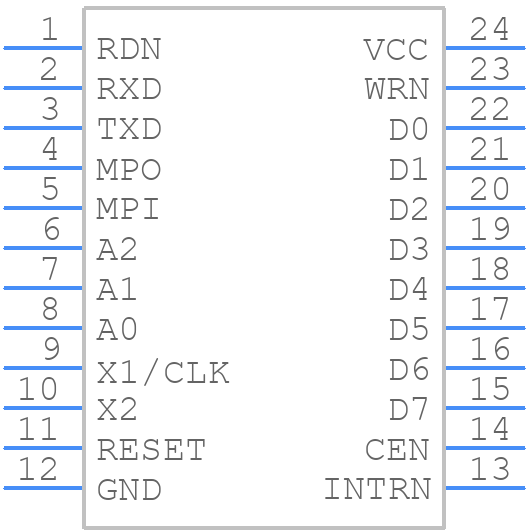

SCC2691AC1D24 - NXP

SCC2691AC1D24 Details

• Manufacturer Part Number:

  SCC2691AC1D24

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  7.50 MM, PLASTIC, MS-013, SOT-137-1, SOL-24

• Pin Count:

  24

• HTS Code:

  8542.31.00.30

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Address Bus Width:

  3

• Boundary Scan:

  NO

• Clock Frequency-Max:

  4 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Encoding/Decoding Method:

  NRZ

• Data Transfer Rate-Max:

  0.0046875 MBps

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PDSO-G24

• Length:

  15.4 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  1

• Number of Serial I/Os:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  0

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  2 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
