SCC68681E1N40,112 - NXP

Description: UART IC 2, DUART Channel - - 40-DIP

Download SCC68681E1N40,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

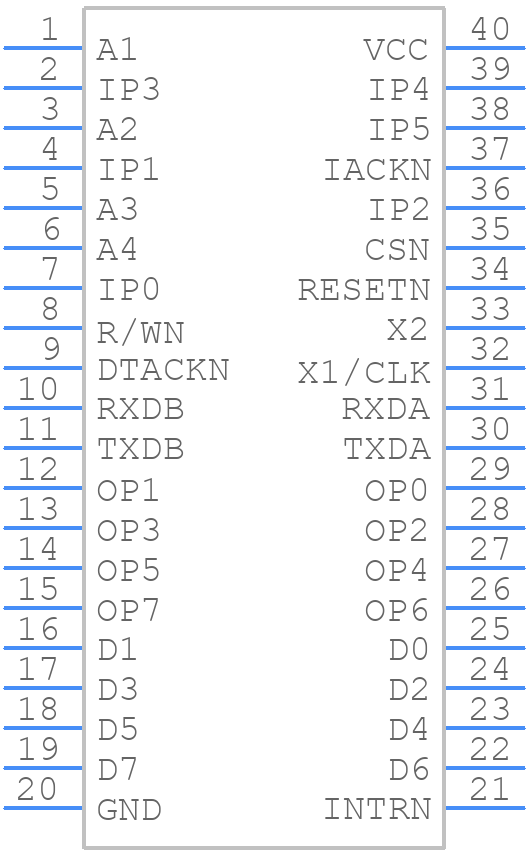

SCC68681E1N40,112 - NXP - PCB symbol
click to zoom
PCB Footprints

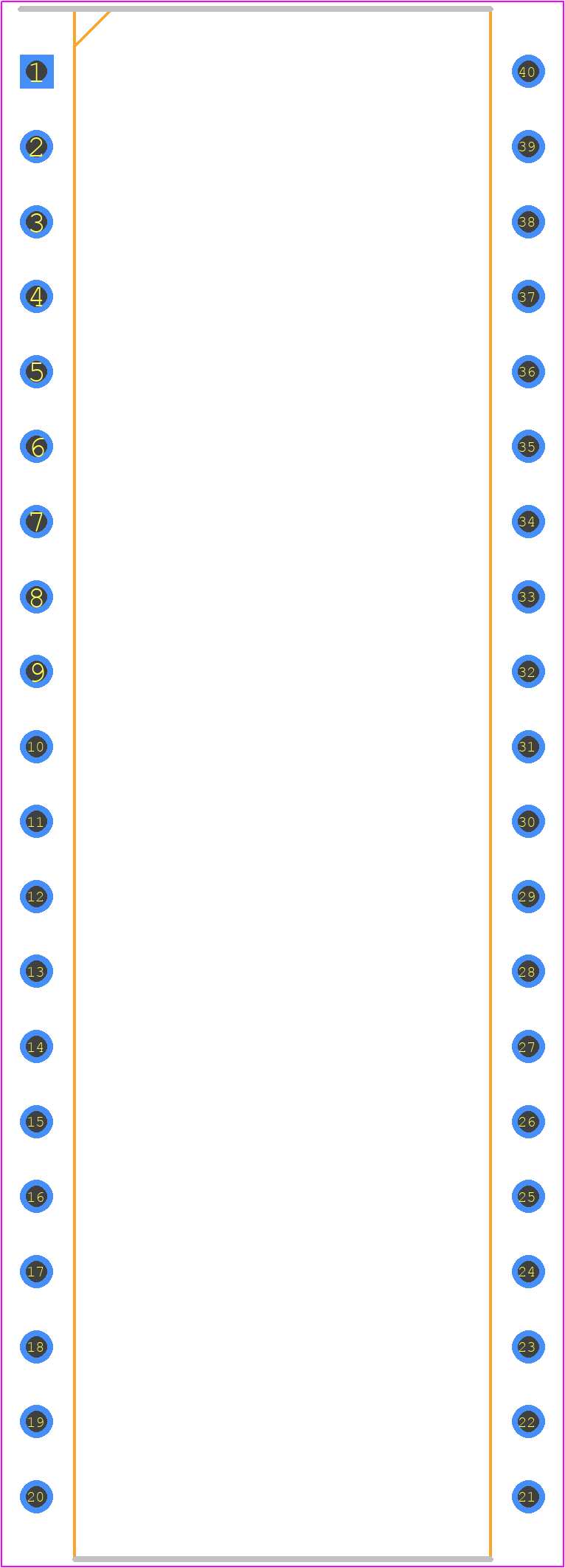

SCC68681E1N40,112 - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP40: plastic dual in-line package; 40 leads (600 mil) SOT129-1
click to zoom
3D Models
SCC68681E1N40,112 - NXP - 3D model - Dual-In-Line Packages - DIP40: plastic dual in-line package; 40 leads (600 mil) SOT129-1
click to zoom

SCC68681E1N40,112 Details

  • Manufacturer Part Number:

    SCC68681E1N40,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    0.600 INCH, PLASTIC, MO-015, SOT-129-1, DIP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    SOT129-1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    4

  • Boundary Scan:

    NO

  • Bus Compatibility:

    S68000

  • Clock Frequency-Max:

    4 MHz

  • Communication Protocol:

    ASYNC, BIT

  • Data Encoding/Decoding Method:

    NRZ

  • Data Transfer Rate-Max:

    0.125 MBps

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e3

  • Length:

    52 mm

  • Low Power Mode:

    NO

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

SCC68681E1N40,112 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout guide in their application note AN11529, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The SCC68681E1N40,112 has multiple power modes, including low-power mode. To configure it, refer to the device's register map and programming guide in the datasheet. Specifically, set the Power Mode Control Register (PMCR) to the desired low-power mode, and adjust the clock frequency and voltage regulator settings accordingly.
  • The SCC68681E1N40,112 is rated for operation from -40°C to +125°C (junction temperature). However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in your design.
  • Yes, the SCC68681E1N40,112 is AEC-Q100 qualified, making it suitable for automotive applications. However, ensure that your design meets the specific requirements of the automotive industry, such as ISO 26262 functional safety and electromagnetic compatibility (EMC) standards.
  • NXP provides a range of debugging tools and resources, including the LPC-Link2 debugger, Keil µVision IDE, and the NXP Support Community. You can also consult the device's datasheet, application notes, and user manuals for troubleshooting guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SCC68681E1N40,112 Overview

Use the download button to access the SCC68681E1N40,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SCC68, or try a keyword search, such as Serial IO/Communication Controllers
