- Part Number SE2432L-R
- Manufacturer Skyworks
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24-Pin QFN
- Released Date Nov 1, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SE2432L-R Details
-
Manufacturer Part Number:
SE2432L-R
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Package Description:
3 X 4 MM, 0.90 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, QFN-24
-
Pin Count:
24
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Skyworks Solutions Inc
-
JESD-30 Code:
R-XQCC-N24
-
Length:
4 mm
-
Moisture Sensitivity Level:
1
SE2432L-R Frequently Asked Questions (FAQs)
-
The recommended PCB layout and land pattern can be found in the Skyworks Solutions application note AN40443, which provides detailed guidelines for optimal performance and thermal management.
-
Skyworks Solutions provides a set of simulation models and design tools, such as the Skyworks Model Library, to help optimize the input and output matching networks for specific applications. Additionally, engineers can use third-party simulation software, such as ADS or AWR, to design and optimize the matching networks.
-
For high-power applications, it's essential to ensure proper thermal management to prevent overheating. The SE2432L-R has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Additionally, engineers should ensure good airflow and consider using heat sinks or thermal interfaces to dissipate heat.
-
The SE2432L-R is an ESD-sensitive device, and engineers should take precautions to prevent electrostatic discharge damage. This includes using ESD-protective packaging, wrist straps, and mats, as well as following proper handling and storage procedures.
-
Skyworks Solutions performs a range of reliability and qualification tests on the SE2432L-R, including temperature cycling, humidity testing, and mechanical stress testing. The device is also qualified according to industry standards, such as AEC-Q101, to ensure reliability and performance in automotive and other high-reliability applications.
Trust Checks
Community Provided
System Verified
Community Approved
SE2432L-R Overview

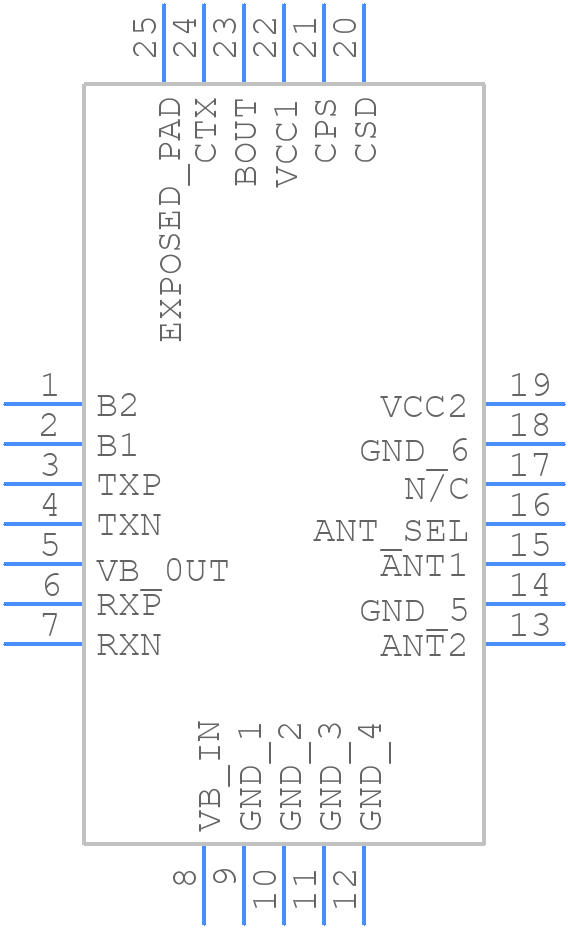

Use the download button to access the SE2432L-R schematic symbol, PCB footprint, and 3D model.
