2 X 2 MM, 0.90 MM HEIGHT, HALOGEN FREE AND ROHS COMPLIANT, QFN-8
Pin Count:
8
HTS Code:
8542.39.00.01
Manufacturer:
Skyworks Solutions Inc
YTEOL:
0
JESD-30 Code:
S-PDSO-N8
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.9 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
2 mm
SE2568L-R Frequently Asked Questions (FAQs)
The recommended PCB layout and land pattern for the SE2568L-R can be found in the Skyworks Solutions Inc. application note AN302A, which provides detailed guidelines for optimal performance and thermal management.
Proper thermal management can be achieved by following the recommended PCB layout and land pattern, using thermal vias, and applying a thermal interface material (TIM) between the device and the heat sink. Additionally, ensuring good airflow and using a heat sink with a thermal resistance of less than 10°C/W can help to dissipate heat effectively.
The SE2568L-R is rated for operation from -40°C to +85°C, but it's recommended to operate within a temperature range of -20°C to +70°C for optimal performance and reliability.
Common issues with the SE2568L-R can be troubleshooted by checking the PCB layout and component placement, ensuring proper power supply decoupling, and verifying the input and output impedance matching. Additionally, checking for signs of overheating, electrical overstress, or physical damage can help identify the root cause of the issue.
The recommended input and output impedance matching networks for the SE2568L-R can be found in the Skyworks Solutions Inc. application note AN302A, which provides detailed schematics and component values for optimal impedance matching.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SE2568L-R Overview

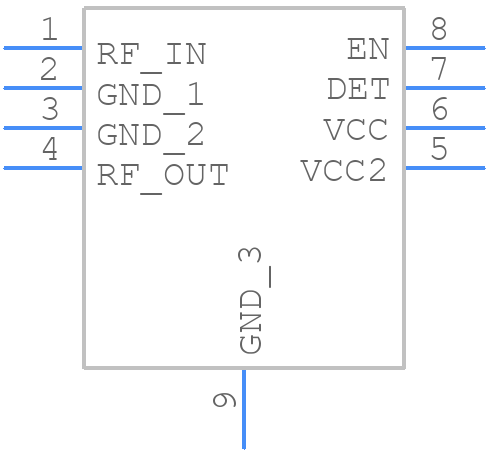

Use the download button to access the SE2568L-R schematic symbol, PCB footprint, and 3D model.
