SERC816 - STMicroelectronics

SERC816 Details

• Manufacturer Part Number:

  SERC816

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

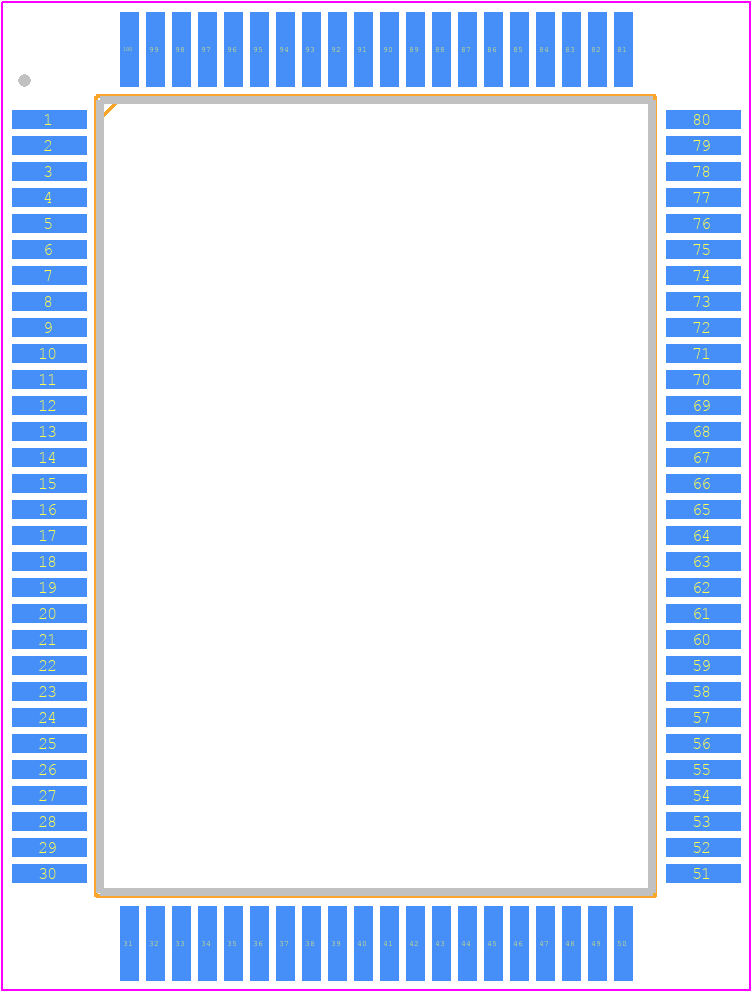

• Part Package Code:

  QFP

• Package Description:

  QFP, QFP100,.7X.9

• Pin Count:

  100

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.30

• Manufacturer:

  STMicroelectronics

• YTEOL:

  4.5

• Address Bus Width:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  64 MHz

• Communication Protocol:

  ASYNC, BIT

• Data Transfer Rate-Max:

  2 MBps

• External Data Bus Width:

  16

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e4

• Length:

  20 mm

• Low Power Mode:

  NO

• Number of Serial I/Os:

  1

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP100,.7X.9

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.4 mm

• Supply Voltage-Max:

  5.75 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
