- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SG2524N
- Part Number SG2524N
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N(R-PDIP-T16)
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
SG2524N Details
-
Manufacturer Part Number:
SG2524N
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
16
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
SG2524N Frequently Asked Questions (FAQs)
-
A good PCB layout for the SG2524N involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, using a shielded inductor and keeping the switching node (SW) away from sensitive nodes can help reduce EMI and noise.
-
The inductor value for the SG2524N depends on the input voltage, output voltage, and desired output current. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements. It's also important to consider the inductor's saturation current, DC resistance, and core material.
-
The SG2524N is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature (TJ) does not exceed 150°C to maintain reliability and performance.
-
Yes, the SG2524N can be used in a synchronous rectification configuration to improve efficiency. However, it's essential to ensure that the device is properly configured and the synchronous rectifier is properly sized to handle the output current and voltage.
-
To troubleshoot issues with the SG2524N, start by checking the PCB layout, component values, and soldering quality. Verify that the input and output voltages are within the recommended range, and check for any signs of overheating or physical damage. Use an oscilloscope to observe the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
System Verified
SG2524N Overview

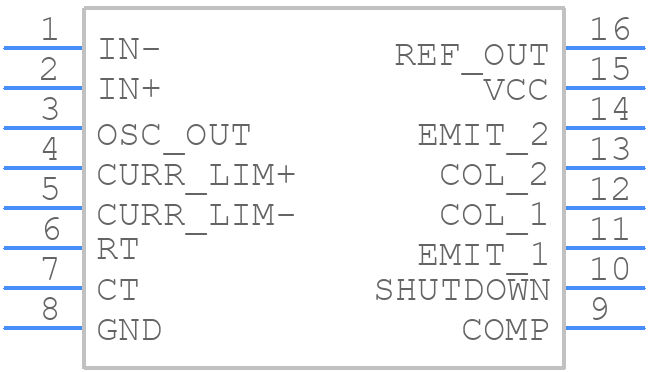

Use the download button to access the SG2524N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG252,
or try a keyword search, such as Switching Regulator or Controllers
