SGM40677YG/TR - SGMICRO

Description: 28V/5.5A Ratings Wide Input Operating Voltage: 4V to 22V Low On-Resistance: 18mΩ at 5V and +25℃ Programmable Current Limit through RSET: 500mA ~ 5.5A Configurable OVLO through OV1/OV2 Input 5.965V (TYP) 10.1V (TYP) 16.89V (TYP) 23.1V (TYP) Configurable ON Polarity Configurable Over-Current Action Auto-Retry Mode Limited Constant Current Mode

Download SGM40677YG/TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

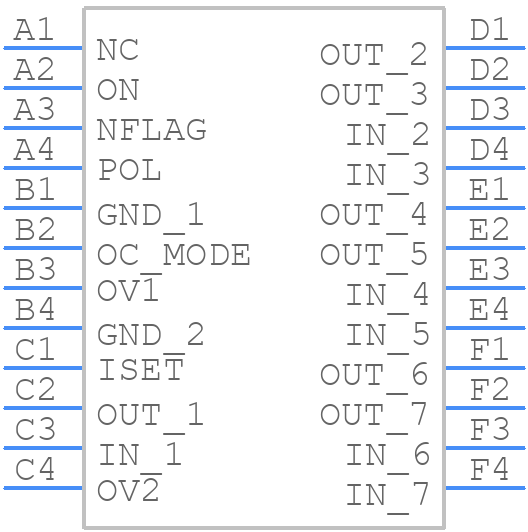

SGM40677YG/TR - SGMICRO - PCB symbol
