Please enter a minimum 3 letters or numbers
Technical Content
Part Image

SI3459BDV-T1-BE3 - Vishay

Description: MOSFET P-CHANNEL 60-V (D-S)

Download SI3459BDV-T1-BE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

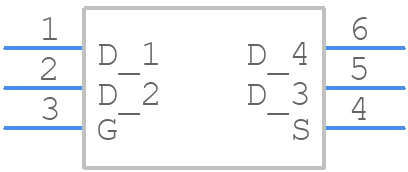

SI3459BDV-T1-BE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SI3459BDV-T1-BE3 - Vishay PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOP 6 LEAD
click to zoom
3D Models
SI3459BDV-T1-BE3 - Vishay - 3D model - SOT23 (6-Pin) - TSOP 6 LEAD
click to zoom

SI3459BDV-T1-BE3 Details

  • Manufacturer Part Number:

    SI3459BDV-T1-BE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-193C, TSOP-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    2.9 A

  • Drain-source On Resistance-Max:

    0.216 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    30 pF

  • JEDEC-95 Code:

    MO-193AA

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    3.3 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SI3459BDV-T1-BE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SI3459BDV-T1-BE3 is a 5-pin SOT23 package with a minimum pad size of 0.8 mm x 0.8 mm and a thermal pad size of 2.5 mm x 2.5 mm.
  • To ensure the SI3459BDV-T1-BE3 operates within its SOA, follow the recommended operating conditions, including voltage, current, and power dissipation. Monitor the device's junction temperature and ensure it does not exceed the maximum rated temperature of 150°C.
  • For optimal thermal management, use a thermal pad on the PCB, ensure good airflow, and consider using a heat sink or thermal interface material (TIM) if the device is expected to operate at high temperatures or high power levels.
  • To prevent electrostatic discharge (ESD) damage, handle the SI3459BDV-T1-BE3 with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure the workspace is ESD-safe and follow proper handling procedures.
  • For optimal soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a soldering time of 3-5 seconds. Ensure the PCB is clean and free of oxidation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI3459BDV-T1-BE3 Overview

Use the download button to access the SI3459BDV-T1-BE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI345, or try a keyword search, such as Small Signal Field-Effect Transistors

Parts related to SI3459BDV-T1-BE3

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
