SI4501BDY-T1-GE3 - Vishay

Description: MOSFET

Download SI4501BDY-T1-GE3 Model
Schematic
symbols

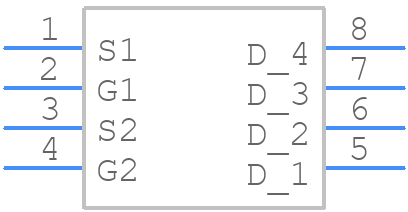

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI4501BDY-T1-GE3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SOIC (NARROW): 8-LEAD JEDEC Part Number: MS-012
click to zoom
3D Models
SI4501BDY-T1-GE3 - Vishay  - 3D model - Small Outline Packages - SOIC (NARROW): 8-LEAD JEDEC Part Number: MS-012
click to zoom

SI4501BDY-T1-GE3 Details

  • Manufacturer Part Number:

    SI4501BDY-T1-GE3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Drain Current-Max (ID):

    12 A

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Operating Temperature-Max:

    150 °C

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    4.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

SI4501BDY-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SI4501BDY-T1-GE3 is a 5-pin SOT23 package with a minimum pad size of 0.8 mm x 0.8 mm and a maximum pad size of 1.2 mm x 1.2 mm, with a 0.5 mm spacing between pads.
  • To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes thermal stress on the component.
  • The maximum operating temperature range for the SI4501BDY-T1-GE3 is -40°C to 150°C, with a storage temperature range of -40°C to 150°C.
  • To handle ESD protection, use an ESD wrist strap or mat, and ensure the PCB is designed with ESD protection in mind, including the use of ESD-sensitive component handling and storage procedures.
  • The recommended power supply decoupling for the SI4501BDY-T1-GE3 is to use a 10 μF ceramic capacitor in parallel with a 100 nF ceramic capacitor, placed as close as possible to the device.
