SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
8 A
Drain-source On Resistance-Max:
0.017 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
4.16 W
Qualification Status:
Not Qualified
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
SI4618DY-T1-GE3 Frequently Asked Questions (FAQs)
Vishay provides a recommended PCB layout and land pattern in their application note AN806, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and thermal management.
The SI4618DY-T1-GE3 has a high power density, so thermal management is crucial. Vishay recommends using a thermal pad or heat sink, and ensuring good airflow around the device. The application note AN806 also provides guidance on thermal management.
The SI4618DY-T1-GE3 has an operating temperature range of -55°C to 150°C, but it's essential to note that the maximum junction temperature (Tj) is 150°C. Engineers should ensure that the device does not exceed this temperature to prevent damage or degradation.
The SI4618DY-T1-GE3 is a commercial-grade device, but Vishay does offer a high-reliability version, the SI4618DY-T1-HR3, which is designed for aerospace and high-reliability applications. Engineers should contact Vishay for more information on the high-reliability version.
Vishay recommends storing the SI4618DY-T1-GE3 in a dry, cool place, away from direct sunlight and moisture. Engineers should handle the device by the body, avoiding touching the leads or die, and use anti-static precautions to prevent damage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SI4618DY-T1-GE3 Overview

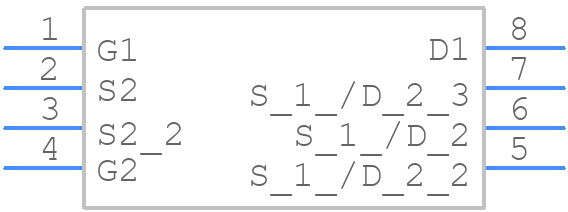

Use the download button to access the SI4618DY-T1-GE3 schematic symbol, PCB footprint, and 3D model.
