Part Image

SI4816BDY-T1-E3 - Vishay

Description: MOSFET 30V Vds 20V Vgs SO-8

Download SI4816BDY-T1-E3 Model

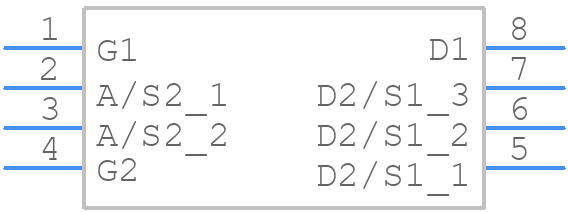

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI4816BDY-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead soic
click to zoom
3D Models
SI4816BDY-T1-E3 - Vishay  - 3D model - Small Outline Packages - 8 lead soic
click to zoom

SI4816BDY-T1-E3 Details

  • Manufacturer Part Number:

    SI4816BDY-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MS-012, SOIC-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    5 mJ

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    5.8 A

  • Drain-source On Resistance-Max:

    0.0185 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    MS-012AA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Reference Standard:

    IEC-61249-2-21

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    55 ns

  • Turn-on Time-Max (ton):

    32 ns

SI4816BDY-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SI4816BDY-T1-E3 is a 5x5mm QFN package with a 0.5mm pitch. A detailed footprint recommendation can be found in the Vishay Intertechnologies application note AN81142.
  • To ensure the SI4816BDY-T1-E3 operates within its recommended operating conditions, maintain a junction temperature (TJ) below 150°C, and keep the input voltage (VIN) between 2.7V and 5.5V. Also, ensure the output current (IOUT) does not exceed 1.5A.
  • The thermal resistance (θJA) of the SI4816BDY-T1-E3 is 45°C/W. This value represents the thermal resistance from the junction to the ambient air.
  • Yes, the SI4816BDY-T1-E3 is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
  • To troubleshoot issues with the SI4816BDY-T1-E3, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure the device is properly soldered to the PCB. If issues persist, consult the datasheet and application notes or contact Vishay Intertechnologies' technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI4816BDY-T1-E3 Overview

Use the download button to access the SI4816BDY-T1-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI481, or try a keyword search, such as Small Signal Field-Effect Transistors
