The recommended PCB footprint for the SI4830CDY-T1-GE3 is a 5-pin SOT23 package with a 1.5mm x 2.5mm body size. The recommended land pattern is available in the Vishay Intertechnologies' application note AN10343.
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet. Additionally, ensure that the device is operated within the recommended operating temperature range of -55°C to 150°C, and that the maximum junction temperature (Tj) is not exceeded.
The recommended soldering profile for the SI4830CDY-T1-GE3 is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. It is also recommended to follow the IPC/JEDEC J-STD-020 standard for soldering.
To handle the SI4830CDY-T1-GE3 for ESD protection, it is recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. The device has an ESD rating of 2 kV human body model (HBM) and 150 V machine model (MM).
The recommended storage condition for the SI4830CDY-T1-GE3 is in a dry, cool place, away from direct sunlight and moisture. The devices should be stored in their original packaging or in a similar anti-static packaging to prevent damage from ESD.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI4830CDY-T1-GE3 Overview

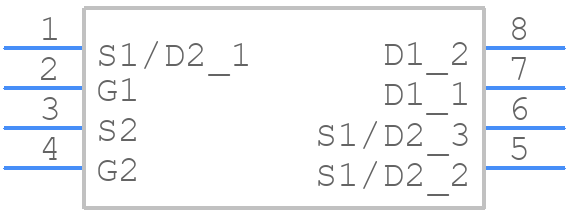

Use the download button to access the SI4830CDY-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI483,
or try a keyword search, such as Small Signal Field-Effect Transistors
