The recommended PCB footprint for the SI5948DU-T1-GE3 is a standard SOT23-6 package with a 1.8mm x 1.3mm body size. A recommended land pattern is available in the Vishay Intertechnologies' application note AN-10365.
To ensure proper biasing, follow the recommended operating conditions in the datasheet. Typically, this includes connecting the input pins to a stable voltage source, and ensuring the output pins are properly terminated. Additionally, decoupling capacitors may be required to filter out noise and ensure stable operation.
The maximum power dissipation of the SI5948DU-T1-GE3 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at an ambient temperature of 25°C. However, this value can be derated for higher temperatures.
Yes, the SI5948DU-T1-GE3 is designed for high-frequency applications up to 1GHz. However, the device's performance may degrade at higher frequencies due to parasitic capacitance and inductance. It's essential to evaluate the device's performance in the specific application and consider layout and parasitic effects.
The SI5948DU-T1-GE3 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when working with the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe tools to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI5948DU-T1-GE3 Overview

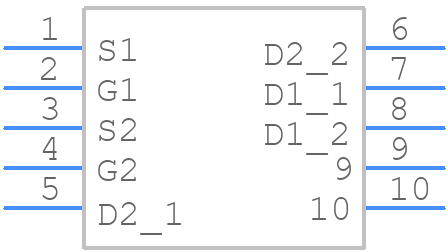

Use the download button to access the SI5948DU-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI594,
or try a keyword search, such as Small Signal Field-Effect Transistors
