SI7288DP-T1-GE3 - Vishay

Description: Trans MOSFET N-CH 40V 20A 8-Pin PowerPAK SO EP T/R

Download SI7288DP-T1-GE3 Model

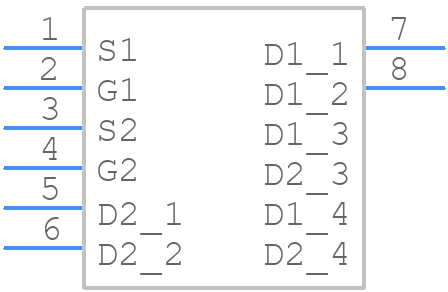

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI7288DP-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAK® SO-8 Dual
click to zoom
3D Models
SI7288DP-T1-GE3 - Vishay  - 3D model - Other - PowerPAK® SO-8 Dual
click to zoom

SI7288DP-T1-GE3 Details

  • Manufacturer Part Number:

    SI7288DP-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, POWERPAK, SOP-8

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    5 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    10 A

  • Drain-source On Resistance-Max:

    0.019 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XDSO-C6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    15.6 W

  • Pulsed Drain Current-Max (IDM):

    50 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
