Skyworks provides a recommended PCB layout guide in their application note AN2011, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SI88641EC-IS requires a specific biasing scheme to operate optimally. Skyworks recommends using a voltage regulator to provide a stable 3.3V supply, and a bias resistor network to set the desired output voltage. Refer to the application note AN2011 for detailed biasing guidelines.
The SI88641EC-IS is rated for operation from -40°C to +125°C, but the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
Skyworks provides a troubleshooting guide in their application note AN2011, which covers common issues and their potential causes. Additionally, engineers can use tools like oscilloscopes and voltage meters to debug the circuit and identify the root cause of the issue.
Yes, Skyworks recommends using EMI mitigation techniques such as shielding, filtering, and grounding to minimize electromagnetic interference. The application note AN2011 provides guidelines for EMI mitigation and PCB layout considerations to reduce EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI88641EC-IS Overview

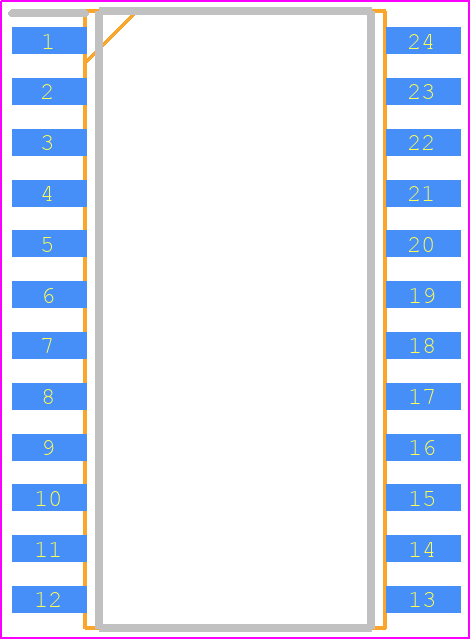

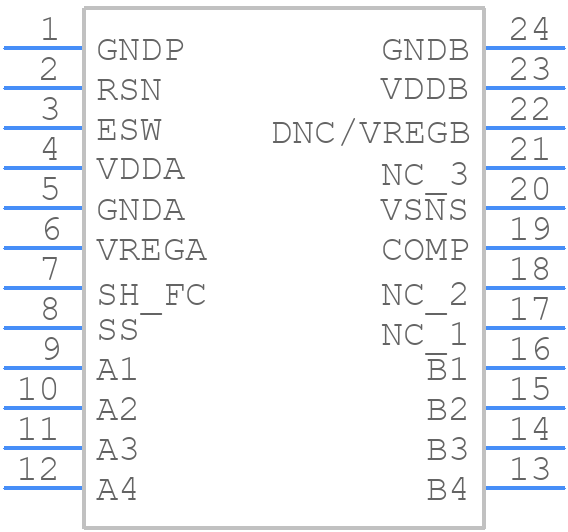

Use the download button to access the SI88641EC-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI886,
or try a keyword search, such as Other Interface ICs
