SiA110DJ-T1-GE3 - Vishay

Description: SiA110DJ-T1-GE3 N-Channel MOSFET, 12 A, 100 V TrenchFET, 6-Pin SC-70 Vishay Siliconix

Download SiA110DJ-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

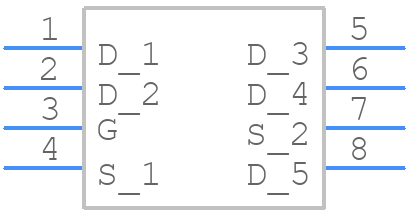

SiA110DJ-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SiA110DJ-T1-GE3 - Vishay PCB footprint - Other - Other - SiA110DJ-T1-GE3-3
click to zoom
3D Models
SiA110DJ-T1-GE3 - Vishay - 3D model - Other - SiA110DJ-T1-GE3-3
click to zoom

SiA110DJ-T1-GE3 Details

  • Manufacturer Part Number:

    SIA110DJ-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-70, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2018-01-28

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.75

  • Avalanche Energy Rating (Eas):

    5 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    12 A

  • Drain-source On Resistance-Max:

    0.072 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    7 pF

  • JESD-30 Code:

    S-PDSO-N6

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    19 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    40 ns

  • Turn-on Time-Max (ton):

    30 ns

SiA110DJ-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SIA110DJ-T1-GE3 is a rectangle with dimensions of 1.6 mm x 0.8 mm, with a pad size of 0.5 mm x 0.5 mm and a pitch of 0.65 mm.
  • To handle thermal management, ensure good airflow around the device, use a thermal pad or heat sink, and follow the recommended PCB layout guidelines. The device's thermal resistance (RthJA) is 125°C/W.
  • The maximum operating temperature range for the SIA110DJ-T1-GE3 is -55°C to 150°C, with a storage temperature range of -55°C to 175°C.
  • Yes, the SIA110DJ-T1-GE3 is qualified to AEC-Q101 and is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • To ensure proper soldering, follow the recommended soldering profile, use a solder with a melting point above 217°C, and avoid excessive soldering temperatures or times. The device is compatible with lead-free soldering processes.
