The recommended PCB footprint for the SIC32303CD-T5E3 is a 5-pin SOT-23 package with a minimum pad size of 0.8 mm x 0.8 mm and a maximum pad size of 1.2 mm x 1.2 mm, with a non-solder mask defined (NSMD) pad shape.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and avoiding excessive power dissipation. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The maximum allowed voltage on the enable pin (EN) of the SIC32303CD-T5E3 is 6 V, which is the maximum rating for the logic input voltage. Exceeding this voltage may cause damage to the device.
Yes, the SIC32303CD-T5E3 can be used in switching regulator applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range (typically up to 1 MHz). Additionally, consider the device's power dissipation and thermal management requirements.
To ensure proper operation, it's recommended to sequence the power-up and power-down of the SIC32303CD-T5E3. Typically, the enable pin (EN) should be pulled low during power-up and power-down to prevent unwanted switching. Consult the datasheet and application notes for specific guidance on power sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIC32303CD-T5E3 Overview

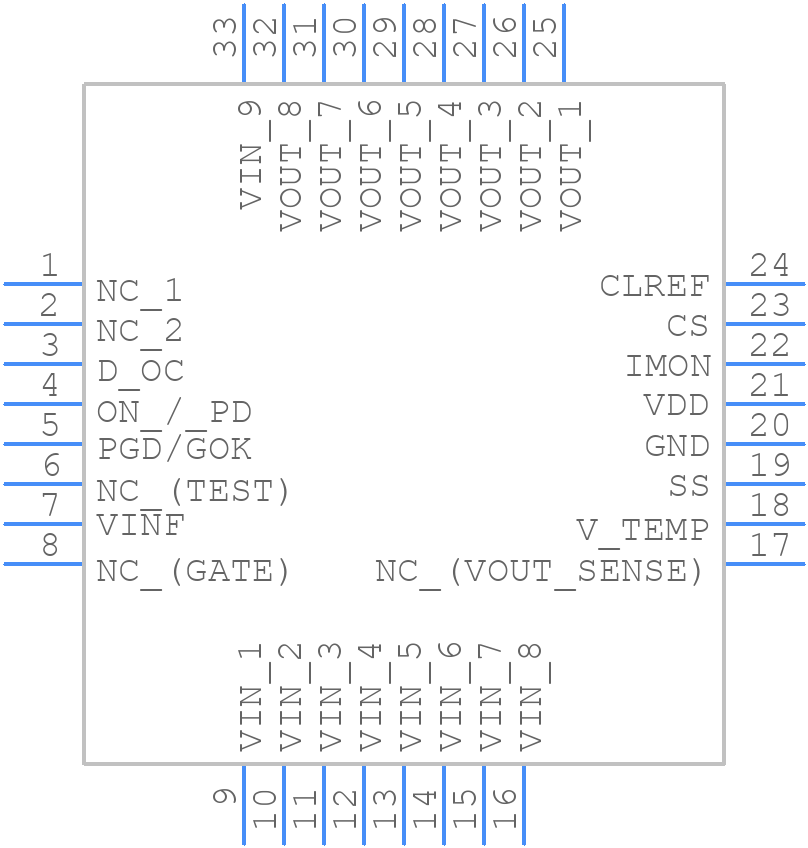

Use the download button to access the SIC32303CD-T5E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIC32,
or try a keyword search, such as Power Management Circuits
