SIC645ER-T1-GE3 - Vishay

Description: Gate Drivers Smrt Pwr Stage VRPwr 4.5 to 18V; 5V PWM

Download SIC645ER-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

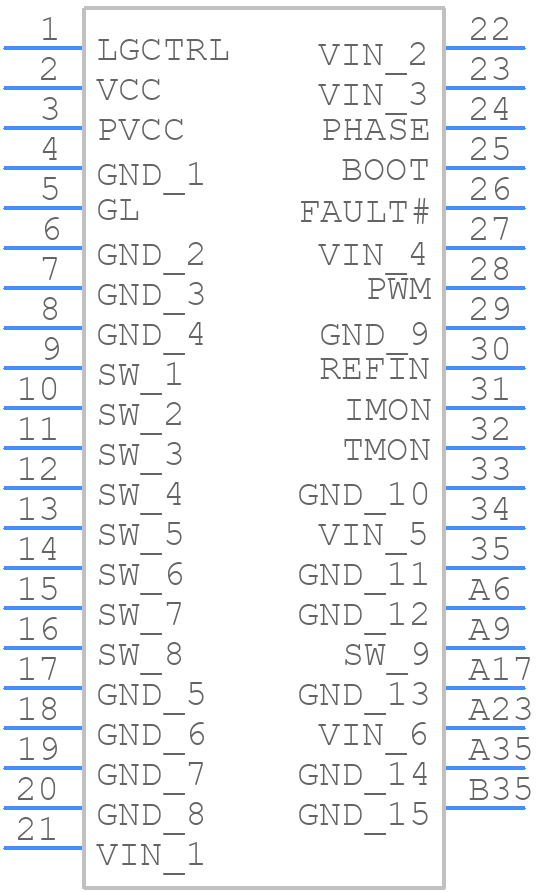

SIC645ER-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIC645ER-T1-GE3 - Vishay PCB footprint - Other - Other - SIC645ER-T1-GE3-7
click to zoom
3D Models
SIC645ER-T1-GE3 - Vishay - 3D model - Other - SIC645ER-T1-GE3-7
click to zoom

SIC645ER-T1-GE3 Details

  • Manufacturer Part Number:

    SIC645ER-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MLP-55, 32 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    0.66 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    5 mm
