- Part Number SIL04P06Y-TP
- Manufacturer MCC
- Pin Count 6
- Part Category MOSFET (P-Channel)
- Package Category SOT23 (6-Pin)
- Footprint Name SOT23 (6-Pin) - SOT23-6L (H=1.45mm)
- Released Date Jan 11, 2024
- Last Modified Date May 17, 2024 4:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
SIL04P06Y-TP Details
-
Manufacturer Part Number:
SIL04P06Y-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
YTEOL:
6
-
DS Breakdown Voltage-Min:
60 V
-
Drain Current-Max (ID):
3.5 A
-
Drain-source On Resistance-Max:
0.12 Ω
-
Moisture Sensitivity Level:
1
SIL04P06Y-TP Frequently Asked Questions (FAQs)
-
The recommended land pattern for the SIL04P06Y-TP is a rectangular pad with a size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
-
To handle thermal management, ensure good thermal conductivity between the device and the PCB by using a thermal via or a thermal pad. Also, consider using a heat sink or a thermal interface material (TIM) to dissipate heat efficiently.
-
The maximum operating temperature range for the SIL04P06Y-TP is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
-
Yes, the SIL04P06Y-TP is designed to withstand vibrations up to 10G. However, it's crucial to ensure proper mounting and soldering to prevent mechanical stress and damage.
-
To prevent EOS, ensure that the device is operated within the recommended voltage and current ratings. Also, use proper ESD protection measures, such as ESD diodes or TVS diodes, to protect the device from voltage transients and spikes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
SIL04P06Y-TP Overview

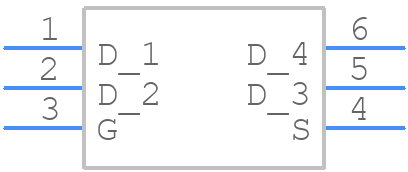

Use the download button to access the SIL04P06Y-TP schematic symbol, PCB footprint, and 3D model.
