For optimal performance, it's recommended to follow Vishay's application note AN826 on PCB layout and thermal management for power MOSFETs. This includes using a thermal pad, minimizing trace resistance, and ensuring good heat dissipation.
Consult Vishay's application note AN901 on biasing and configuring power MOSFETs. This includes selecting the correct gate-source voltage, ensuring proper gate drive, and configuring the device for the desired operating mode.
Vishay provides reliability data in their datasheet, but for specific application expectations, consult Vishay's reliability handbook or contact their technical support. Factors such as operating conditions, temperature, and usage patterns affect reliability and lifespan.
Yes, follow standard ESD precautions when handling the SIP32416DNP-T1-GE4, such as using an ESD wrist strap, mat, or workstation, and ensuring the device is properly packaged and stored. Consult Vishay's ESD handling guidelines for more information.
The SIP32416DNP-T1-GE4 is a commercial-grade device, but Vishay offers high-reliability versions of their power MOSFETs. For aerospace or high-reliability applications, consult Vishay's high-reliability product portfolio and contact their technical support for specific testing and certification requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SIP32416DNP-T1-GE4 Overview

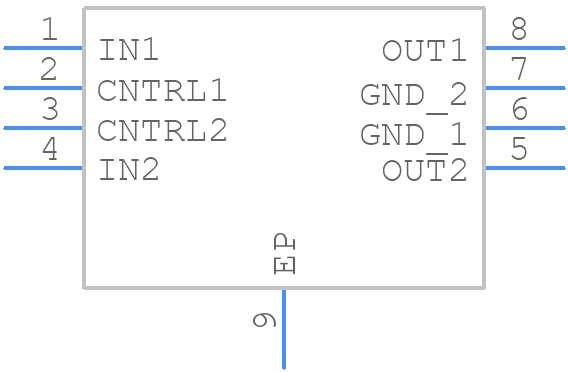

Use the download button to access the SIP32416DNP-T1-GE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIP32,
or try a keyword search, such as Power Management Circuits
