SIP32433BDN-T1E4 - Vishay

Description: 3.5 A, 78 m?, 2.8 V to 23 V True Reverse Current Blocking eFuse With Programmable Current Limit and OVP

Download SIP32433BDN-T1E4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

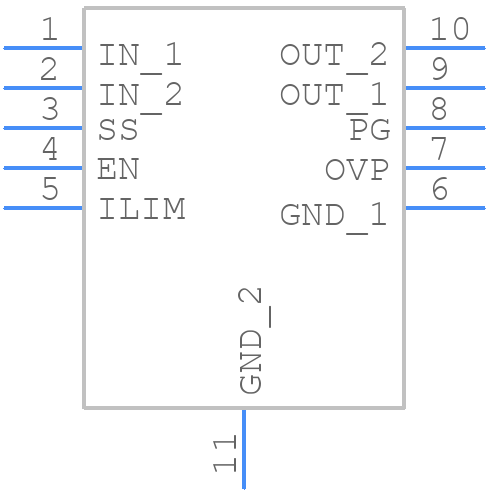

SIP32433BDN-T1E4 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIP32433BDN-T1E4 - Vishay PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-10 LEAD (3 X 3)
click to zoom
3D Models
SIP32433BDN-T1E4 - Vishay - 3D model - Small Outline No-lead - DFN-10 LEAD (3 X 3)
click to zoom

SIP32433BDN-T1E4 Details

  • Manufacturer Part Number:

    SIP32433BDN-T1E4

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:3.68A; THERMAL SHUTDOWN:165C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    2.8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.05

  • Width:

    3 mm

SIP32433BDN-T1E4 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the package to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature rating.
  • The recommended soldering conditions for the SIP32433BDN-T1E4 are a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a soldering iron temperature of 350°C (662°F) and a soldering time of 3 seconds maximum.
  • Yes, the SIP32433BDN-T1E4 is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
  • The recommended storage condition for the SIP32433BDN-T1E4 is to store it in a dry, cool place with a temperature range of -40°C to 125°C (-40°F to 257°F) and a relative humidity of 60% or less.
