SiT1602AI-11-XXE-24.000000 footprint, schematic symbol and 3D model by SiTime

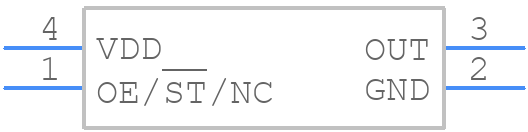

Symbol

PCB Footprints

3D Models

SiT1602AI-11-XXE-24.000000 Details

Manufacturer Part Number:
SIT1602AI-11-XXE-24.000000
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, Taiwan, Thailand
Manufacturer:
SiTime Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; HCMOS COMPATIBLE OUTPUT ALSO AVAILABLE; BULK
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
20%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
24 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVCMOS/HCMOS
Output Load:
15 pF
Physical Dimension:
2.5mm x 2.0mm x 0.75mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

The typical operating current of the SIT1602AI-11-XXE-24.000000 is around 6-8 mA, but this can vary depending on the specific application and operating conditions.
The SIT1602AI-11-XXE-24.000000 has an operating temperature range of -40°C to +85°C, but it can be customized to operate up to +125°C or more depending on the specific requirements. Consult with SiTime Corporation for high-temperature customization options.
SiTime Corporation offers a wide range of frequencies and stability options for the SIT1602AI-11-XXE-24.000000. Consult with SiTime Corporation's frequency planning tool or contact their technical support team to ensure the oscillator meets your specific requirements.
The maximum output load capacitance for the SIT1602AI-11-XXE-24.000000 is 15 pF, but it's recommended to keep the load capacitance as low as possible to ensure optimal oscillator performance.
The SIT1602AI-11-XXE-24.000000 is designed to meet industrial-grade reliability standards and can operate in environments with high vibration or shock. However, it's recommended to consult with SiTime Corporation's technical support team to ensure the oscillator meets your specific environmental requirements.
