SIT8008BIF73-XXE-6.780000 - SiTime

Description: Low Power Programmable Oscillator, QFN_2016_4pins

Download SIT8008BIF73-XXE-6.780000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

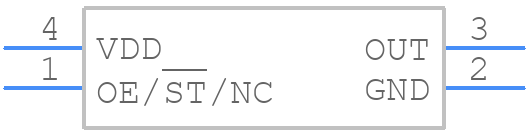

SIT8008BIF73-XXE-6.780000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SIT8008BIF73-XXE-6.780000 - SiTime PCB footprint - Other - Other - QFN_2016_4pins
click to zoom
3D Models
SIT8008BIF73-XXE-6.780000 - SiTime - 3D model - Other - QFN_2016_4pins
click to zoom

SIT8008BIF73-XXE-6.780000 Details

  • Manufacturer Part Number:

    SIT8008BIF73-XXE-6.780000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; ALSO COMPATIBLE WITH HCMOS O/P

  • Fall Time-Max:

    2 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    6.78 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC4,.08,37

  • Physical Dimension:

    2mm x 1.6mm x 0.75mm

  • Rise Time-Max:

    2 ns

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SIT8008BIF73-XXE-6.780000 Frequently Asked Questions (FAQs)

  • SiTime provides a recommended PCB layout guide in their application note AN10003, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The SIT8008BIF73-XXE-6.780000 is a programmable oscillator, and the frequency can be configured using SiTime's TimeView software or by using the One-Time Programmable (OTP) feature. Refer to the datasheet or SiTime's documentation for specific instructions.
  • The SIT8008BIF73-XXE-6.780000 has an operating temperature range of -40°C to +85°C, but it can be extended to -55°C to +125°C with the use of SiTime's high-temperature option (HTO).
  • SiTime recommends using a low-ESR capacitor (e.g., 0.1 μF) between the VDD pin and GND, and a 10 μF capacitor between the VDD pin and GND for additional decoupling. The power supply should be clean and well-regulated to ensure optimal performance.
  • The typical start-up time for the SIT8008BIF73-XXE-6.780000 is around 2-5 ms, but this can vary depending on the specific configuration and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIT8008BIF73-XXE-6.780000 Overview

Use the download button to access the SIT8008BIF73-XXE-6.780000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIT80, or try a keyword search, such as XO
