SiTime provides a recommended PCB layout guide for their oscillators, which includes guidelines for pad layout, trace routing, and component placement to ensure optimal performance and minimize noise coupling.
SiTime offers a configuration tool on their website that allows you to customize the oscillator's frequency, output format, and other parameters to meet your specific application requirements.
The typical lead time for the SIT8021AI-J4-XXS-24.000000E oscillator is 6-8 weeks, and the minimum order quantity (MOQ) is usually 1,000 pieces. However, this may vary depending on the region and availability, so it's best to check with SiTime or an authorized distributor for the latest information.
The SIT8021AI-J4-XXS-24.000000E oscillator is specified to operate over a temperature range of -40°C to +85°C. If your application requires a different temperature range, you should consult with SiTime or an authorized distributor to determine the best oscillator for your needs.
SiTime oscillators are designed to provide high reliability and long lifespan, with a typical MTBF (mean time between failures) of 100 million hours or more. However, the actual lifespan may vary depending on the application, operating conditions, and other factors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SiT8021AI-J4-XXS-24.000000E Overview

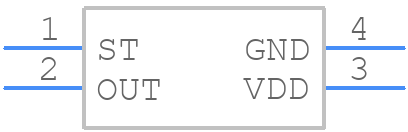

Use the download button to access the SiT8021AI-J4-XXS-24.000000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT80,
or try a keyword search, such as XO
