SIT8918BE-21-18E-100.000000 footprint, schematic symbol and 3D model by SiTime

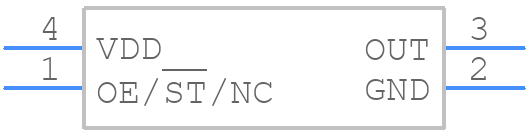

Symbol

PCB Footprints

3D Models

SIT8918BE-21-18E-100.000000 Details

SiTime provides a recommended PCB layout guide in their application notes, which includes guidelines for pad layout, trace routing, and decoupling capacitors to ensure optimal performance and minimize noise.
The SIT8918BE-21-18E-100.000000 is a programmable oscillator, and the frequency can be configured using SiTime's programming software or by using a specific pin configuration. Refer to the datasheet or application notes for more information.
The typical power consumption of the SIT8918BE-21-18E-100.000000 is around 3.5mA, but this can vary depending on the specific configuration and operating conditions. Refer to the datasheet for more information.
The SIT8918BE-21-18E-100.000000 is rated for operation up to 105°C, making it suitable for high-temperature applications. However, it's essential to ensure that the oscillator is properly derated and that the system design takes into account the temperature coefficient of the oscillator.
Decoupling capacitors should be placed as close as possible to the oscillator's power pins, and the capacitors should be selected based on the specific frequency and operating conditions. SiTime recommends using a 0.01uF to 0.1uF capacitor for decoupling.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the SIT8918BE-21-18E-100.000000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SIT89, or try a keyword search, such as XO
