SiT9501AI-01B3-3310-156.250000 - SiTime

Description: Ultra-low Jitter Differential XO for Standard Networking Frequencies

Download SiT9501AI-01B3-3310-156.250000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

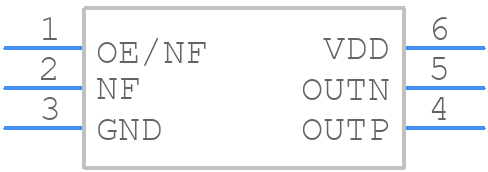

SiT9501AI-01B3-3310-156.250000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT9501AI-01B3-3310-156.250000 - SiTime PCB footprint - Other - Other - Atna_QFN_3225_6pins
click to zoom
3D Models
SiT9501AI-01B3-3310-156.250000 - SiTime - 3D model - Other - Atna_QFN_3225_6pins
click to zoom

SiT9501AI-01B3-3310-156.250000 Details

  • Manufacturer Part Number:

    SIT9501AI-01B3-3310-156.250000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PQFD, 6 PIN

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Fall Time-Max:

    0.2 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    156.25 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVPECL

  • Output Load:

    50 OHM

  • Package Equivalence Code:

    SOLCC6,.1,43

  • Packing Method:

    BULK

  • Physical Dimension:

    3.2mm x 2.5mm x 0.9mm

  • Rise Time-Max:

    0.2 ns

  • Screening Level:

    MIL-STD-883F

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SiT9501AI-01B3-3310-156.250000 Frequently Asked Questions (FAQs)

  • SiTime recommends a 4-layer PCB with a dedicated ground plane, and the oscillator should be placed near the center of the board to minimize noise and EMI effects. Additionally, a 0.1uF decoupling capacitor should be placed close to the VDD pin.
  • The SIT9501AI-01B3-3310-156.250000 has a CMOS output and requires a 15pF to 30pF load capacitance for proper termination. A 15pF capacitor can be used in parallel with a 1kΩ resistor to ensure proper signal integrity.
  • The SIT9501AI-01B3-3310-156.250000 is rated for operation from -40°C to +85°C, making it suitable for industrial and commercial applications.
  • SiTime recommends using a TVS (Transient Voltage Suppressor) diode or an ESD protection device, such as the SMF05C, to protect the oscillator from electrostatic discharge events.
  • The SIT9501AI-01B3-3310-156.250000 has a typical start-up time of 2ms to 5ms, depending on the power supply ramp-up time and the specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SiT9501AI-01B3-3310-156.250000 Overview

Use the download button to access the SiT9501AI-01B3-3310-156.250000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT95, or try a keyword search, such as XO
