SK035M0470B5S-1015 - Yageo Group

Description: Yageo 470μF 35 V dc Aluminium Electrolytic Capacitor, SK Series 2000h 10 Dia. x 15mm

Download SK035M0470B5S-1015 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SK035M0470B5S-1015 - Yageo Group - PCB symbol
click to zoom
PCB Footprints

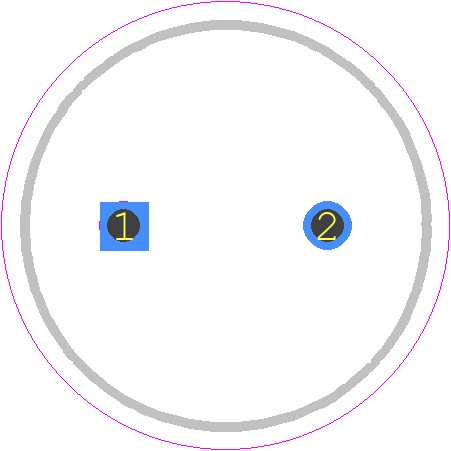

SK035M0470B5S-1015 - Yageo Group PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10mm D
click to zoom
3D Models
SK035M0470B5S-1015 - Yageo Group - 3D model - Capacitor, Polarized Radial Diameter - 10mm D
click to zoom

SK035M0470B5S-1015 Details

  • Manufacturer Part Number:

    SK035M0470B5S-1015

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    0

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Length:

    17.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    430 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

SK035M0470B5S-1015 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the SK035M0470B5S-1015 is between 260°C to 280°C for a maximum of 10 seconds.
  • Yes, the SK035M0470B5S-1015 is a thin-film resistor with a low inductance design, making it suitable for high-frequency applications up to several hundred MHz.
  • The SK035M0470B5S-1015 has an MSL rating of 1, which means it can withstand a maximum of 30°C/60%RH for 168 hours without being sensitive to moisture.
  • The SK035M0470B5S-1015 has a maximum operating temperature of 155°C, but it's recommended to derate the power rating above 125°C to ensure reliability.
  • Yes, the SK035M0470B5S-1015 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
