SK100M450ST - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Radial Leaded 10uF 450V

Download SK100M450ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SK100M450ST - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

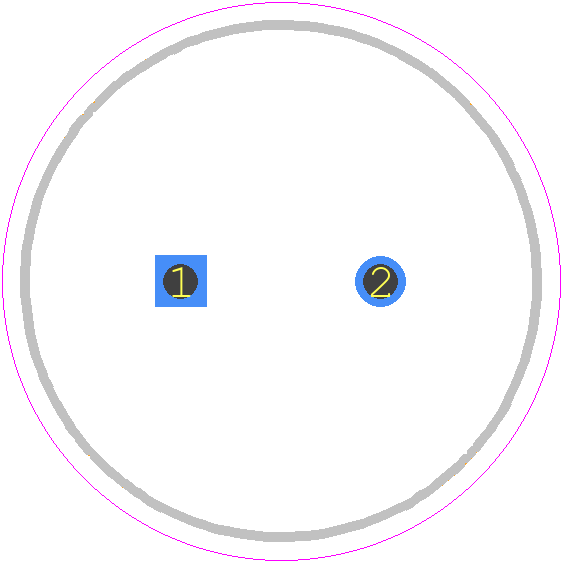

SK100M450ST - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SK100M450ST
click to zoom
3D Models
SK100M450ST - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SK100M450ST
click to zoom

SK100M450ST Details

  • Manufacturer Part Number:

    SK100M450ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    10 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    13 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    26540 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.135 mA

  • Length:

    21 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    75 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.24

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

SK100M450ST Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the SK100M450ST is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • The SK100M450ST is designed to operate in humid environments, but it's essential to follow the manufacturer's guidelines for humidity ratings and ensure proper sealing and encapsulation to prevent moisture ingress.
  • The ESR of the SK100M450ST is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on similar capacitors from Cornell Dubilier Electronics Inc. However, it's recommended to consult with the manufacturer or a reliable source for accurate ESR values.
  • Yes, the SK100M450ST is suitable for use in DC-DC converter applications due to its high-frequency characteristics and low ESR. However, it's essential to ensure the capacitor is properly sized and selected for the specific application requirements.
