Part Image

SK101M250ST - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Radial Leaded 100uF 250V

Download SK101M250ST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

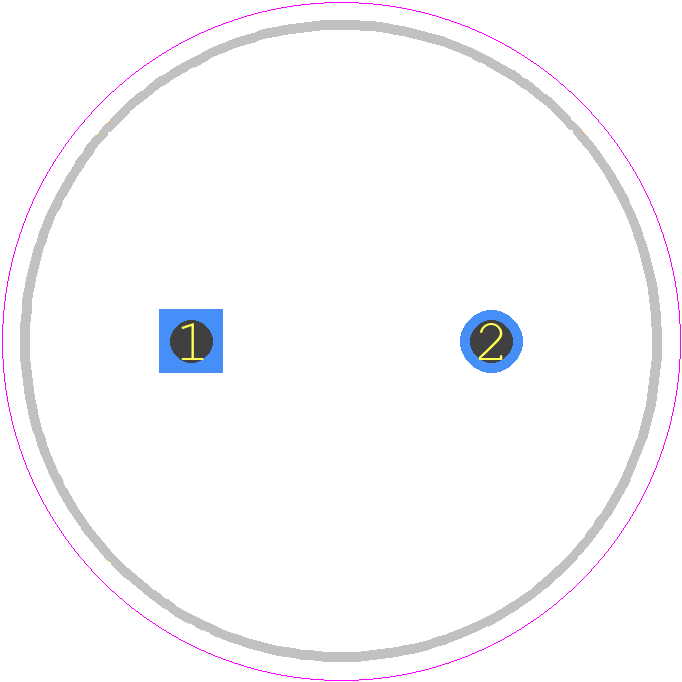

SK101M250ST - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SK101M250ST
click to zoom
3D Models
SK101M250ST - Cornell Dubilier  - 3D model - Capacitor, Polarized Radial Diameter - SK101M250ST
click to zoom

SK101M250ST Details

  • Manufacturer Part Number:

    SK101M250ST

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    7.38

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    1990 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.75 mA

  • Length:

    32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    310 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SK101M250ST Overview

Use the download button to access the SK101M250ST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SK101, or try a keyword search, such as Aluminum Electrolytic Capacitors
