SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE
Gate-Emitter Voltage-Max:
20 V
JESD-30 Code:
R-XUFM-X5
JESD-609 Code:
e2
Number of Elements:
2
Number of Terminals:
5
Operating Temperature-Max:
150 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Polarity/Channel Type:
N-CHANNEL
Qualification Status:
Not Qualified
Reference Standard:
UL RECOGNIZED
Surface Mount:
NO
Terminal Finish:
TIN SILVER
Terminal Form:
UNSPECIFIED
Terminal Position:
UPPER
Transistor Application:
POWER CONTROL
Transistor Element Material:
SILICON
Turn-off Time-Nom (toff):
455 ns
Turn-on Time-Nom (ton):
90 ns
SK60GB123 Frequently Asked Questions (FAQs)
The recommended gate resistor value for SK60GB123 is typically between 10 ohms to 20 ohms, depending on the specific application and switching frequency. However, it's recommended to consult SEMIKRON's application notes or contact their technical support for more specific guidance.
To ensure proper thermal management for SK60GB123, it's essential to provide a good thermal interface between the module and the heat sink. Apply a thin layer of thermal interface material, ensure proper screw torque, and maintain a clean and flat heat sink surface. Additionally, consider using a heat sink with a high thermal conductivity and a sufficient surface area.
The maximum allowed voltage imbalance between the DC-link capacitors in SK60GB123 is typically around 10% to 15%. Exceeding this limit can lead to reduced module reliability and lifespan. It's recommended to use high-quality DC-link capacitors with low equivalent series resistance (ESR) and to ensure proper capacitor balancing and monitoring in the application.
Yes, SK60GB123 can be used in a parallel configuration to increase the power rating. However, it's essential to ensure that the modules are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing. Additionally, the user should consider the increased complexity, thermal management, and potential for circulating currents in a parallel configuration.
The recommended storage temperature range for SK60GB123 is typically between -40°C to 40°C, with a relative humidity of less than 80%. It's essential to follow proper storage and handling procedures to prevent damage to the module.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SK60GB123 Overview

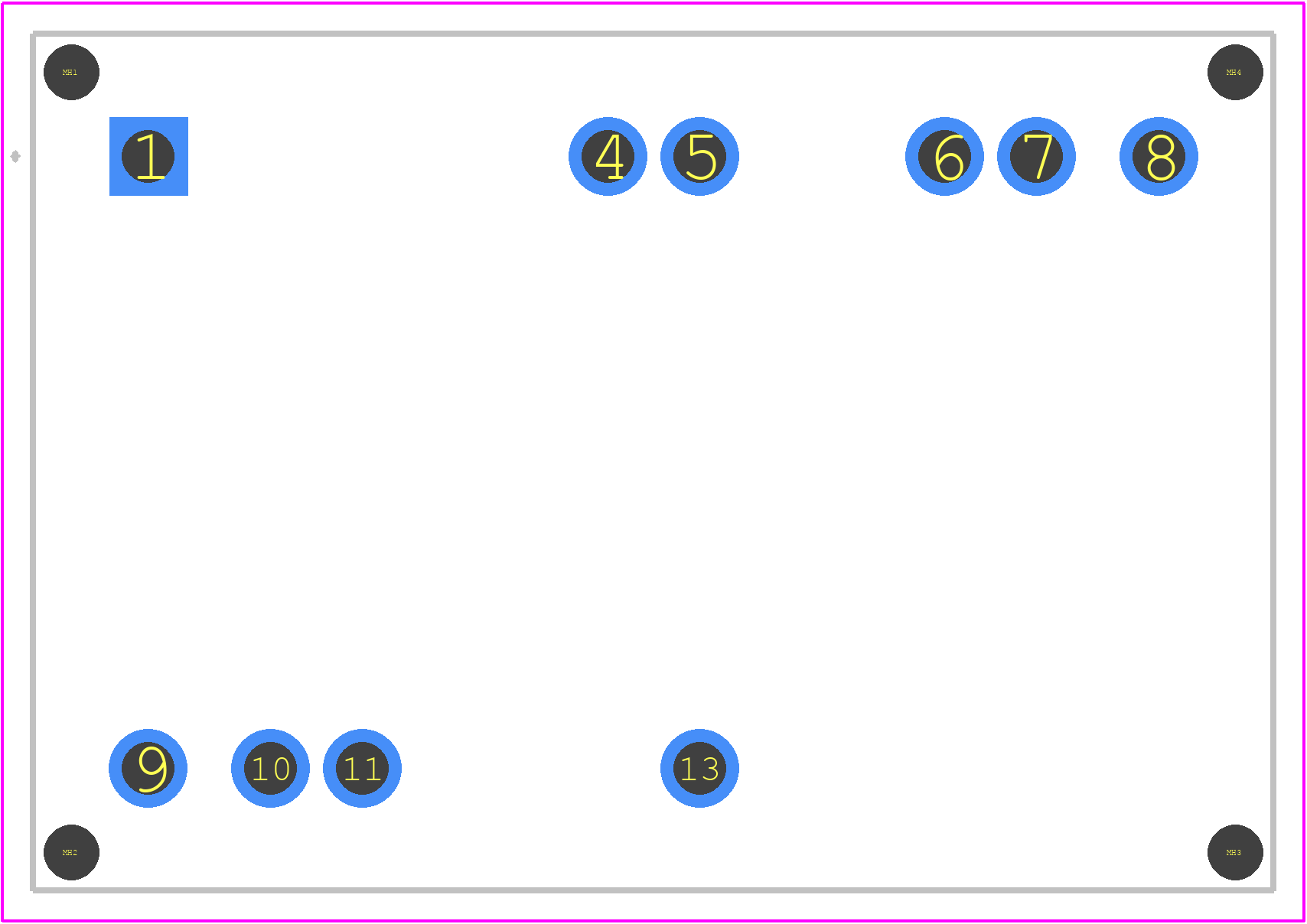

Use the download button to access the SK60GB123 schematic symbol, PCB footprint, and 3D model.
