The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using thermal vias and a heat sink to keep the junction temperature below 125°C.
Optimize the input and output matching networks by using a Smith chart to determine the optimal impedance matching values. Use a network analyzer to measure the device's S-parameters and adjust the matching components accordingly.
The recommended voltage limit is 5V, and the current limit is 1.5A. Exceeding these limits may cause permanent damage to the device.
Ensure EMC by using a shielded enclosure, keeping the device away from other RF sources, and using a common-mode choke to reduce EMI. Also, use a filter or a shielded cable to connect the device to the antenna.
The recommended operating frequency range is 2.4 GHz to 2.5 GHz. Operating outside this range may result in reduced performance and efficiency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY65383-11 Overview

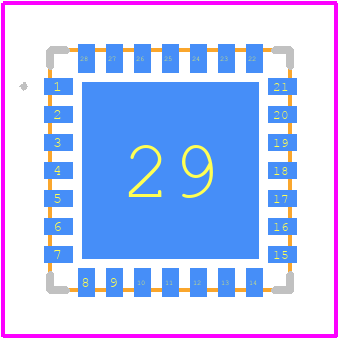

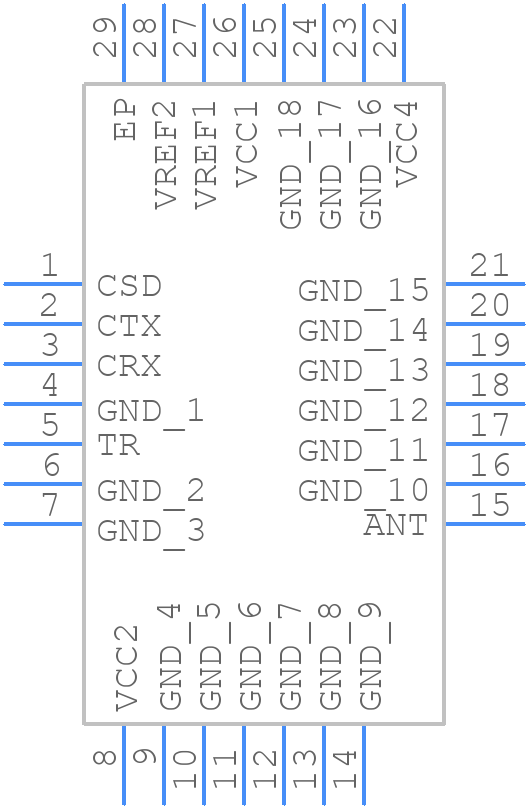

Use the download button to access the SKY65383-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY65,
or try a keyword search, such as Other Telecom ICs
