SLG46140V - Renesas Electronics

Description: The SLG46140 is a one-time non-volatile memory (NVM) Programmable Mixed-Signal Matrix designed to implement a wide variety of mixed-signal functions in a single, small, low-power device by integrating a number of common discrete ICs and passive components. In addition to the integrated analog and digital components, the SLG46140 comprises an internal connection matrix and one-time programmable NVM. By programming the NVM, using the easy-to-use GreenPAK development tools, the designer configures the connecti

Download SLG46140V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

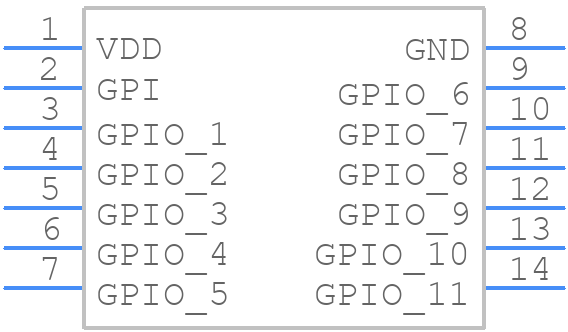

Symbol
SLG46140V - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46140V - Renesas Electronics PCB footprint - Other - Other - SLG46140V
click to zoom
3D Models
SLG46140V - Renesas Electronics - 3D model - Other - SLG46140V
click to zoom

SLG46140V Details

  • Manufacturer Part Number:

    SLG46140V

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFN

  • Pin Count:

    14

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    CAN ALSO OPERATE AT 3.3V OR 5V SUPPLY

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    R-XQCC-N14

  • JTAG BST:

    NO

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    11

  • Number of Inputs:

    12

  • Number of Macro Cells:

    8

  • Number of Outputs:

    11

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 11 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC14,.06X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Programmable Logic Type:

    OT PLD

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.6 mm

SLG46140V Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the SLG46140V application note (Document Number: R01DS0243EJ0100). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The SLG46140V has a built-in power management system that can be configured for low-power mode using the Power Management Interface (PMI). Refer to the datasheet section 7.3 for PMI register settings and the application note (Document Number: R01DS0243EJ0100) for example code and configuration guidelines.
  • The SLG46140V can operate up to 200 MHz, but the maximum frequency depends on the specific application and system design. Refer to the datasheet section 6.1 for clock frequency specifications and the application note (Document Number: R01DS0243EJ0100) for guidelines on clock frequency selection.
  • The SLG46140V has built-in fault detection mechanisms, such as brown-out detection and clock monitoring. Refer to the datasheet section 7.4 for fault detection and error handling mechanisms. Additionally, the application note (Document Number: R01DS0243EJ0100) provides guidelines on implementing fault detection and error handling in your design.
  • The SLG46140V has a thermal management system that includes thermal monitoring and thermal shutdown. Refer to the datasheet section 6.2 for thermal specifications and the application note (Document Number: R01DS0243EJ0100) for guidelines on thermal management and heat sink design.
