SLG46620-AG - Renesas Electronics

Description: The SLG46620-A provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the I/O Pins and the macrocells of the SLG46620-A.  This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power AEC-Q100 qualified integrated circuit.

Download SLG46620-AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

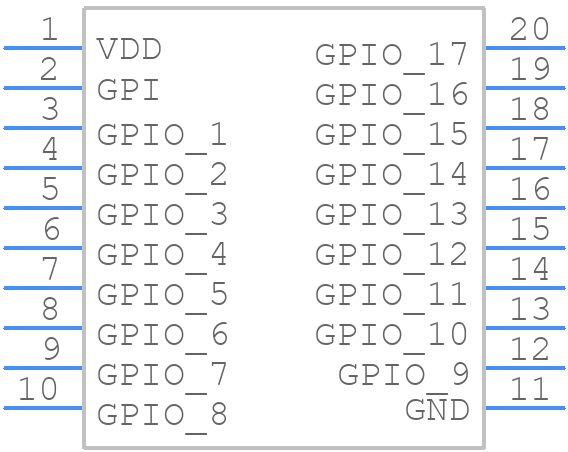

SLG46620-AG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
SLG46620-AG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP_20
click to zoom
3D Models
SLG46620-AG - Renesas Electronics - 3D model - Small Outline Packages - TSSOP_20
click to zoom

SLG46620-AG Details

  • Manufacturer Part Number:

    SLG46620-AG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.55

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Architecture:

    PLA-TYPE

  • In-System Programmable:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • JTAG BST:

    NO

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Dedicated Inputs:

    1

  • Number of I/O Lines:

    17

  • Number of Inputs:

    18

  • Number of Macro Cells:

    1

  • Number of Outputs:

    17

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1 DEDICATED INPUTS, 17 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Programmable Logic Type:

    OT PLD

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

SLG46620-AG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in the SLG46620-AG application note (Document Number: R01AN4393EU0100). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The internal oscillators can be configured using the OSCCFG register (Address: 0x0F). The recommended configuration for optimal clock frequency is to set the OSCSEL bit to '1' and the OSCCFG bits to '010' for a 12MHz clock frequency. Refer to the SLG46620-AG user manual (Document Number: R01UM4640EU0100) for more details.
  • The maximum current consumption of the SLG46620-AG is 150mA (typical) at 3.3V supply voltage and 25°C ambient temperature. However, this value can vary depending on the operating frequency, voltage, and temperature. Refer to the SLG46620-AG datasheet (Document Number: R01DS0344EU0100) for more details.
  • The SLG46620-AG has several power-saving modes, including Sleep, Hibernate, and Shutdown. These modes can be implemented using the Power Management Controller (PMC) registers. Refer to the SLG46620-AG user manual (Document Number: R01UM4640EU0100) for more details on how to configure and use these modes.
  • Renesas recommends using a 0.1uF decoupling capacitor between the VDD and VSS pins of the SLG46620-AG. This value is sufficient to filter out high-frequency noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLG46620-AG Overview

Use the download button to access the SLG46620-AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG46, or try a keyword search, such as Other Consumer ICs
