Description:The SLG46811 device offers an I2C serial communications bus and a new, multichannel sampling analog comparator, making SLG46811 the smallest GreenPAK that can sample up to four analog channels.The SLG46811 offers digital macrocells, including shift registers and a long pattern generator block, that enable the device to generate master transactions for SPI, I2C, UART, and 1-wire. Also, small size and energy efficiency make the device ideal for a wide set of applications.
Renesas provides a recommended PCB layout guide in the SLG46811V application note (Document Number: R01DS0243EJ0100). It includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SLG46811V has a low-power mode that can be enabled by setting the PWROFF pin high. Additionally, the device has a shutdown mode that can be enabled by setting the SHDN pin high. Refer to the datasheet for specific register settings and timing requirements.
The SLG46811V has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure optimal performance.
The SLG46811V is designed to operate in a variety of environments, including those with high vibration. However, it's essential to follow proper mounting and packaging guidelines to ensure the device's reliability and performance. Renesas provides guidelines for vibration testing and mounting in the SLG46811V application note.
Renesas provides a troubleshooting guide in the SLG46811V application note, which includes common issues, symptoms, and solutions. Additionally, engineers can use Renesas' development tools, such as the RL78/G13 Evaluation Board, to debug and test their designs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG46811V Overview

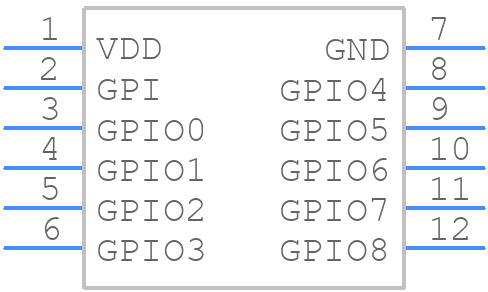

Use the download button to access the SLG46811V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG46,
or try a keyword search, such as Programmable Logic Devices
