Renesas provides a recommended PCB layout guide in their application note AN-1153, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The SLG47011V has an internal POR circuit, but it's recommended to use an external POR circuit to ensure reliable startup. Renesas provides an example POR circuit in their application note AN-1153, which includes a voltage supervisor and a reset generator.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at high temperatures. For reliable operation, it's recommended to keep the junction temperature below 125°C.
The SLG47011V has multiple power modes, including a low-power mode. To configure the device for low-power mode, set the PWRDN pin high and ensure that the VCC supply is within the recommended range. Refer to the datasheet for specific register settings and power consumption details.
The SLG47011V can operate at clock frequencies up to 100 MHz. However, Renesas recommends using a clock frequency of 50 MHz or lower to ensure reliable operation and minimize power consumption.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG47011V Overview

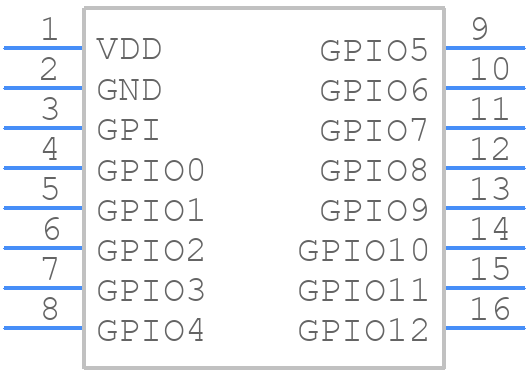

Use the download button to access the SLG47011V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG47,
or try a keyword search, such as Programmable Logic Devices
