Description:The SLG59H1128V is a high‑performance, self‑powered 13.1 mΩ NMOS load switch designed for all 4.5 to 22 V power rails up to 5 A. Using a proprietary MOSFET design, the SLG59H1128V achieves a stable 13.1 mΩ RDSON across a wide input voltage range. In combining novel FET design and copper pillar interconnects, the SLG59H1128V package also exhibits a low thermal resistance for high‑current operation. Designed to operate over a -40 °C to 85 °C range, the SLG59H1128V is available in a low thermal resistance, RoH
CURRENT LIMIT:3.2A; THERMAL SHUTDOWN:145C; ADJUSTABLE CURRENT LIMIT
Adjustable Threshold:
YES
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-XQCC-N18
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
18
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC18,.06X.12,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Seated Height-Max:
0.6 mm
Supply Voltage-Max (Vsup):
22 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
3
Width:
1.6 mm
SLG59H1128V Frequently Asked Questions (FAQs)
Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) for the SLG59H1128V, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
Renesas recommends following the power-up sequence and configuration guidelines outlined in the datasheet, including setting the correct voltage levels, clock frequencies, and configuration registers to ensure proper device operation and prevent damage.
Renesas recommends following standard ESD protection and handling procedures, such as using anti-static wrist straps, mats, and packaging, and avoiding direct contact with the device pins to prevent damage from electrostatic discharge.
The SLG59H1128V is rated for operation up to 125°C, but Renesas recommends derating the device's performance and power consumption at higher temperatures to ensure reliable operation and prevent thermal damage.
Renesas provides a range of debugging tools and resources, including development boards, software development kits, and application notes, to help engineers troubleshoot and debug issues with the SLG59H1128V.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59H1128V Overview

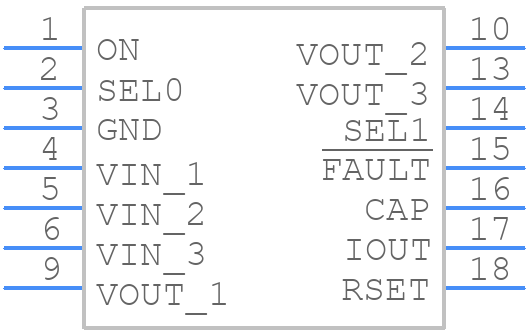

Use the download button to access the SLG59H1128V schematic symbol, PCB footprint, and 3D model.
