Description:The SLG59H1403C is a high voltage GreenFET Load Switch designed for OR’ing or manual Power MUX applications. The part comes with two 3 A rated load switches that are well suited for a variety of systems having multiple power sources. The devices will automatically detect, select, and seamlessly transition between available inputs. Additionally, manual switching between two power rails allowed.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The SLG59H1403C has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Additionally, Renesas provides ESD protection guidelines in their application notes and datasheets.
The SLG59H1403C is an automotive-grade device, but it's essential to ensure that it meets the specific requirements of your automotive application, including AEC-Q100 qualification, PPAP documentation, and compliance with relevant automotive standards.
Renesas provides recommended soldering conditions, including temperature profiles and reflow soldering guidelines, in their packaging and assembly documents. It's essential to follow these guidelines to ensure reliable assembly and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59H1403C Overview

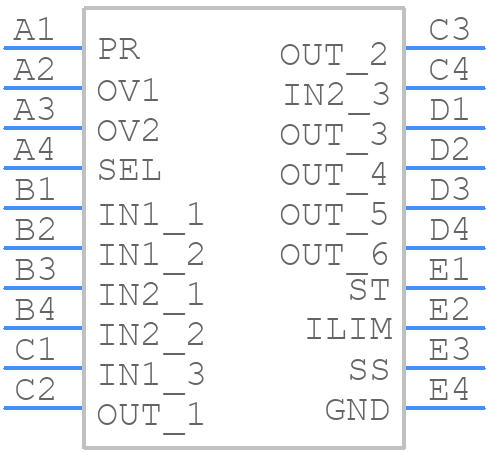

Use the download button to access the SLG59H1403C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG59,
or try a keyword search, such as Power Management Circuits
