Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The SLG59M1639V has an internal overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry, such as a current sense resistor and a comparator, to provide additional protection and flexibility.
The recommended input capacitor value is typically in the range of 4.7uF to 10uF, and a low-ESR ceramic capacitor (e.g., X5R or X7R) is recommended to ensure stable operation and minimize voltage ripple.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding components to minimize electromagnetic interference.
The SLG59M1639V has an operating temperature range of -40°C to +125°C, but it's recommended to derate the device's performance and consider thermal management strategies for high-temperature applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG59M1639V Overview

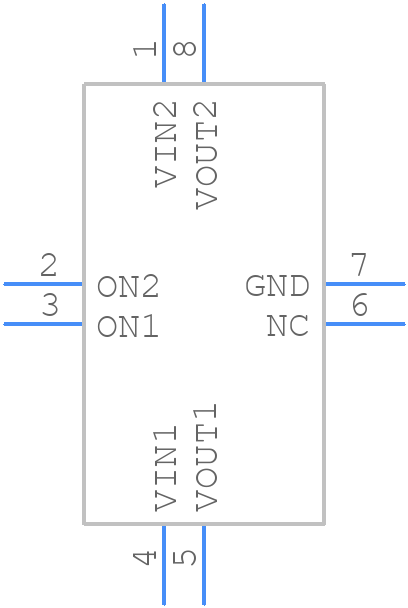

Use the download button to access the SLG59M1639V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG59,
or try a keyword search, such as Power Management Circuits
