Renesas recommends a thermal pad on the bottom of the package, connected to a solid copper plane on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the thermal plane.
Renesas recommends following the thermal design guidelines, using a heat sink if necessary, and ensuring the device operates within the specified temperature range (–40°C to +125°C). Additionally, consider using thermal interface materials to improve heat transfer.
Renesas recommends using a low-ESR ceramic capacitor (CIN) with a value between 1uF to 10uF, and a high-quality, low-ESR output capacitor (COUT) with a value between 10uF to 22uF, depending on the specific application requirements.
Renesas recommends a controlled power-up sequence, with the input voltage (VIN) ramping up slowly (typically 1-10ms) to prevent inrush currents and ensure stable operation. The enable pin (EN) should be pulled high after the input voltage has reached the minimum operating voltage.
Renesas recommends following good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops. Additionally, consider using EMI filters, shielding, and noise-reducing components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG5NT1477V Overview

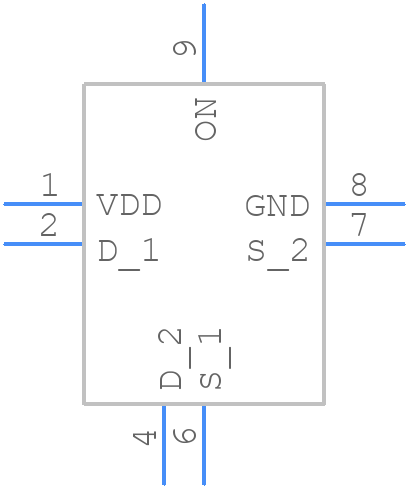

Use the download button to access the SLG5NT1477V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG5N,
or try a keyword search, such as Power Management Circuits
