FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Telecom IC Type:
ATM/SONET/SDH TRANSCEIVER
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
SLK2511CPZP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the SLK2511CPZP evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SLK2511CPZP has a programmable output voltage range. You can configure it using the I2C interface to set the output voltage between 0.6V to 3.3V in 10mV increments. Refer to the datasheet for the specific I2C register settings and voltage calculation formulas.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
To ensure stability and reliability in high-temperature environments, follow the recommended thermal design guidelines, including using a heat sink, thermal vias, and a thermal interface material. Also, make sure to derate the output current according to the temperature derating curve provided in the datasheet.
The typical startup time for the SLK2511CPZP is around 1ms, but this can vary depending on the input voltage, output voltage, and load conditions. You can refer to the datasheet for more information on startup timing and sequencing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLK2511CPZP Overview

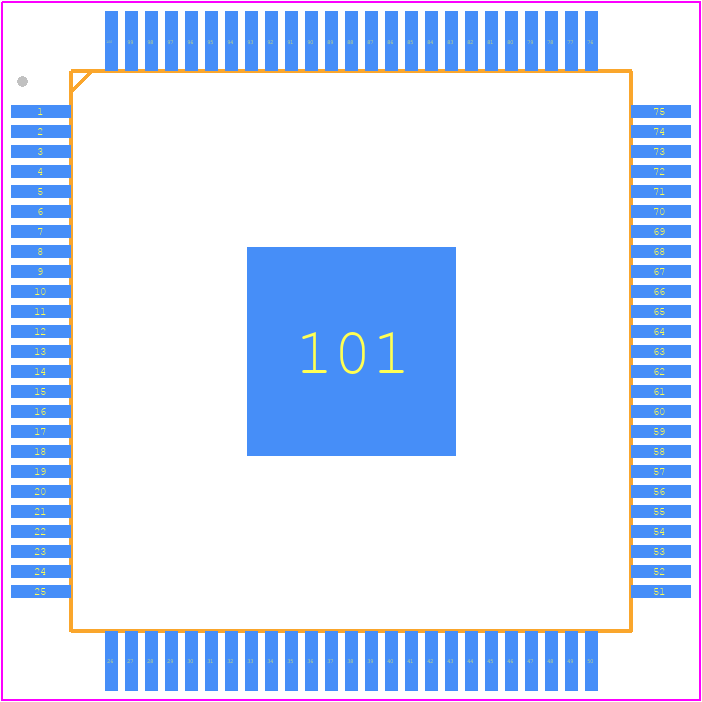

Use the download button to access the SLK2511CPZP schematic symbol, PCB footprint, and 3D model.
