SLP102M100C1P3 - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Snap In 1000uF 100V 20% 105C

Download SLP102M100C1P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLP102M100C1P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

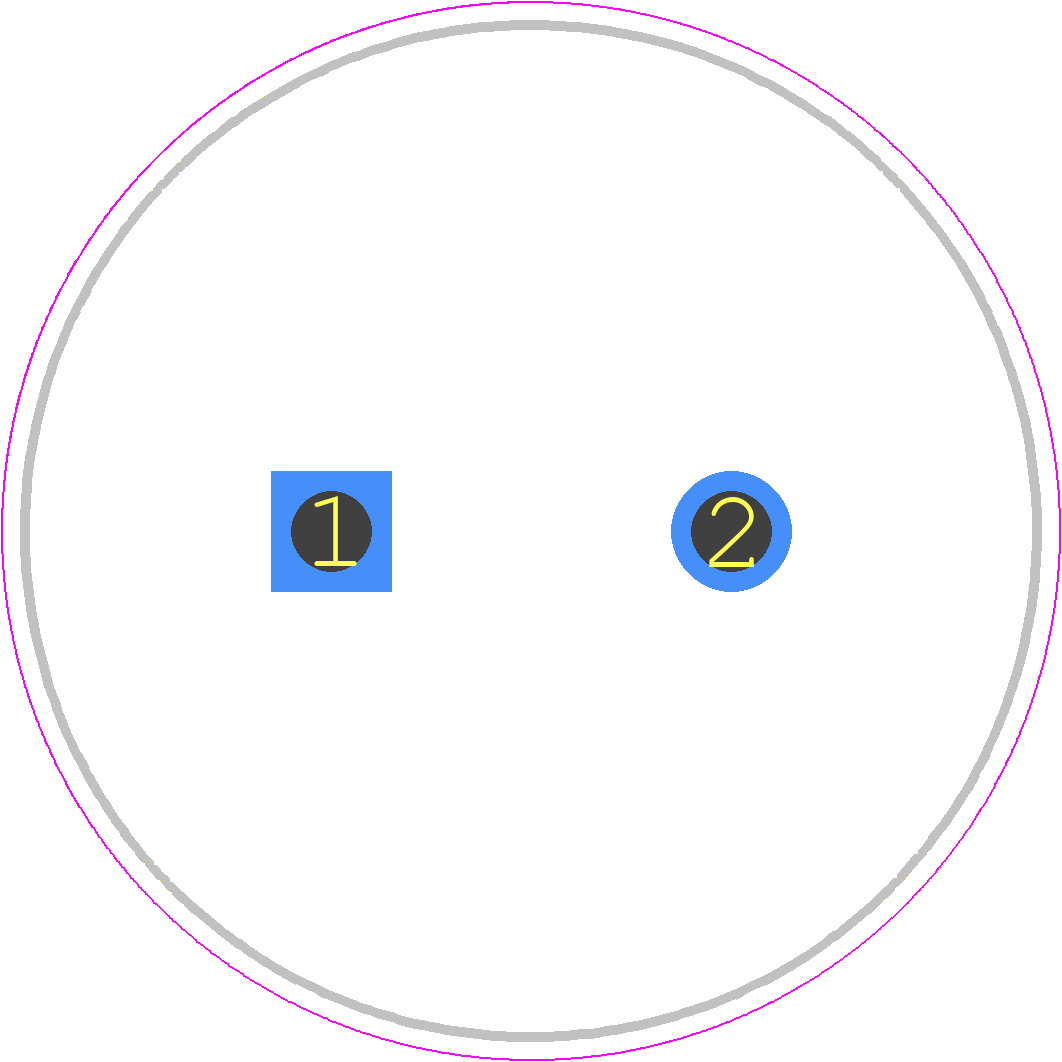

SLP102M100C1P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*25
click to zoom
3D Models
SLP102M100C1P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 25*25
click to zoom

SLP102M100C1P3 Details

  • Manufacturer Part Number:

    SLP102M100C1P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    265 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.9487 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    1450 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLP102M100C1P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the SLP102M100C1P3 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the SLP102M100C1P3 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The ESR of the SLP102M100C1P3 is approximately 0.015 ohms at 100 kHz.
  • Yes, the SLP102M100C1P3 is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • The shelf life of the SLP102M100C1P3 capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under normal environmental conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLP102M100C1P3 Overview

Use the download button to access the SLP102M100C1P3 schematic symbol, PCB footprint, and 3D model.
