SLP181M250A1P3 - Cornell Dubilier

Description: Cornell-Dubilier 180μF 250 V dc Aluminium Electrolytic Capacitor A1, SLP Series 3000h 22 Dia. x 25mm

Download SLP181M250A1P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLP181M250A1P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

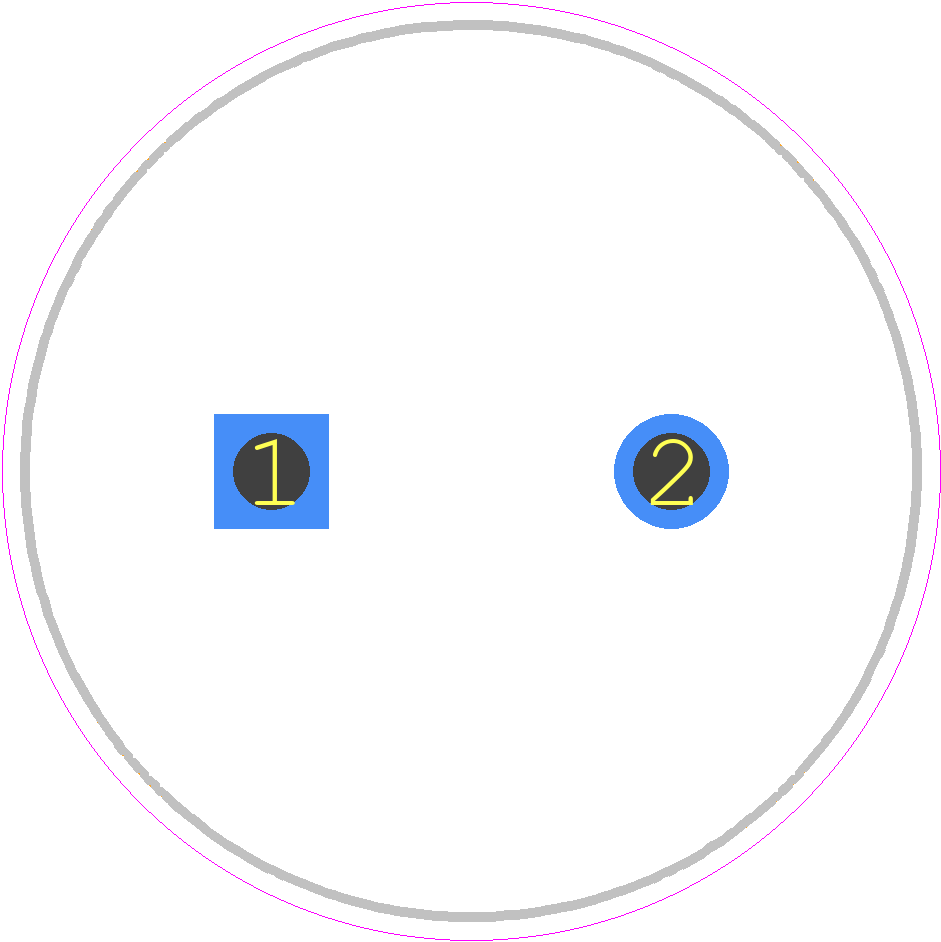

SLP181M250A1P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*254
click to zoom
3D Models
SLP181M250A1P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 22*254
click to zoom

SLP181M250A1P3 Details

  • Manufacturer Part Number:

    SLP181M250A1P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    180 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    1106 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.6364 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    880 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN
